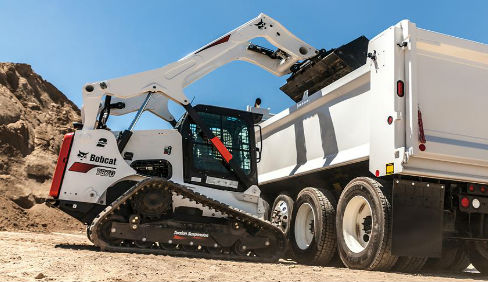

Browse EquipmentBobcat T870
Features
Performance Features
Unmatched power to help you push through your toughest jobs. Benefit from industry-leading breakout force, rated operating capacities, faster cycle times and quicker turns.
Uptime Protection Features
With features and systems that aren’t offered by others, Bobcat® skid-steer loaders are ready to work.
Comfort Features
Climb into the large, comfortable cab and gain unbeatable visibility.
Serviceability Features
Reduce your operating costs through preventative maintenance that gets completed quickly.
Attachment Features
Form a versatile team with your Bobcat® skid-steer loader and the most attachment options.
Specifications
| Model | Bobcat T870 |
| ENGINE | |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Fuel | Diesel |
| Horsepower | 100 hp |
| Turbocharged Engine | Optional |
| PERFORMANCE | |
| Rated Operating Capacity (SAE) | 3,650 lb |
| Operating Capacity (50% of Tip) | 5215 lb |
| Tipping Load | 10430 lb |
| Operating Weight | 12925 lb |
| Travel Speed | 5.5 mph |
| Travel Speed (2-speed option) | 9.3 mph |
| Ground Pressure (Rubber) | 4.8 psi |
| CAPACITIES | |
| Fuel Tank | 32.6 gal |
| HYDRAULIC SYSTEM | |
| System Relief @ Quick Couplers | 3,500 psi |
| Auxiliary Std Flow | 23 gal/min |
| Auxiliary High Flow | 36.6 gal/min |
| DIMENSION | |
| Length | 153.9 in |
| Length without Attachment | 119.3 in |
| Length with Standard Bucket | 153.9 in |
| Width | 82.8 in |
| Width (with bucket) | 84.8 in |
| Height | 84.8 in |
| Height with Operator Cab | 83.6 in |
| Height to Bucket Hinge Pin | 145 in |
| Reach @ Maximum Height | 37.5 in |
| Turning Radius | 99 in |
| Length of track on ground | 70.2 in |
| Track Width | 17.7 in |
| FEATURES | |
| Joystick Control | Optional |
| Air Conditioning | Standard |
| Backup Alarm | Standard |
| BICS System (Interlock) | Standard |
| Cab Heater | Standard |
| Operating Lights | Standard |
| Suspension Seat | Standard |
| Two Speed Travel | Standard |
| Deluxe Instrumentation | Optional |
| Engine Shutdown | Standard |
| Hydraulic Bucket Positioning | Optional |
| High Flow Option | Optional |
| Auxiliary Hydraulics | Standard |
| Bob-Tach Attachment System | Standard |
| Power Bob-Tach | Optional |
| ACS (Switchable Controls) | N/A |
| Ride Control | Optional |
| Horn | Standard |
