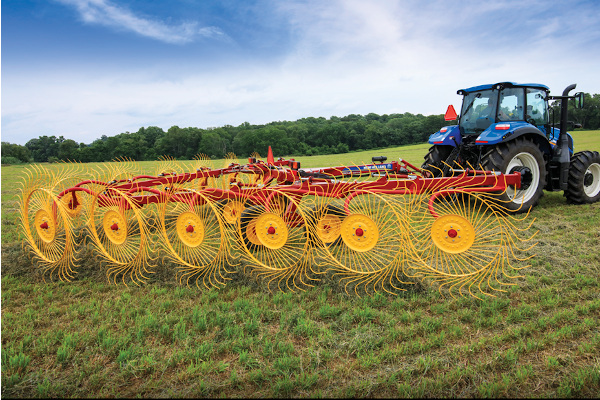

New Holland 1225 12-Wheel
Double tap to zoom
ProCart and ProCart Plus Deluxe Carted Wheel Rakes 1225 12-Wheel
WEIGHT, LBS.
2115
MAXIMUM WORKING WIDTH, FT. IN.
24' 6"
-
Get a Quote
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
-
Request Brochure
Request Brochure
Fields with asterisks* are required.
-
Send to a Friend
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
-
Payment Calculator
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Share This Product:
Features
ProCart™ and ProCart™ PLUS Deluxe Carted Wheel Rakes
MAKE MORE HAY IN EVERY PASS
New Holland ProCart™ and ProCart™ Plus deluxe carted wheel rakes swiftly handle every raking condition you face — from heavy windrows to tedded or thick, wide swaths. They offer dependable, high-speed raking, and are the professional’s choice for big raking capacity.
RAKE WHEELS
CLEANER RAKING WITH INDEPENDENT RAKE WHEEL FLOTATION
Individual floating rake wheels follow ground contours independently to gather every bit of the swath to cause less stubble damage compared to rakes with tandem-mounted rake wheels. Suspended by an adjustable compression spring, each rake wheel can be adjusted to your crop and field conditions for the cleanest possible raking.
BUILT-IN VERSATILITY
SINGLE-SIDE RAKING, “V” RAKING OR WINDROW TURNING
ProCart rakes allow you to rake any way you choose. You can rake with either side, turn over damp windrows, or select “V” raking with a quick turn of the hydraulic lock valves.
Specifications
| Model | 1225 12-Wheel |
| Finger Wheels | |
| Number of finger wheels | 12 |
| Finger wheel diameter, in (m) | 55 (1.4) |
| Teeth per wheel (#) | 40 |
| Dimensions | |
| Overall length*, ft. (m) | 22' (6.7) |
| Minimum transport height, ft. (m) | 7'9" (2.4) |
| Transport width, ft. (m) | 8' 5" (2.6) |
| Tread width outside of tire, ft. (m) | 5' 10" (1.77) |
| Minimum working width*, ft. (m) | 21' 8" (6.6) |
| Maximum working width*, ft. (m) | 24' 6" (7.5) |
| Minimum windrow width*, ft. (m) | 3' (0.9) |
| Maximum windrow width*, ft. (m) | 6' 7" (2) |
| Weight, lbs. (kg) | 2115 (960) |
| Tires | 205 - 75/15 |
| Tractor requirement, hp (kW) | 50 (36.7) |
| Tractor requirement, hydraulic | 1 DA |
| * Depending on crop conditions | |
