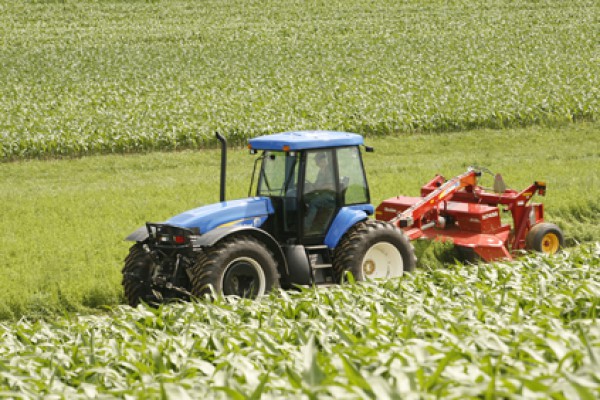

Discbine® H7000 Side-Pull Disc Mower-Conditioner H7450 (PRIOR MODEL)
-
Get a Quote
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
-
Request Brochure
Request Brochure
Fields with asterisks* are required.
-
Send to a Friend
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
-
Payment Calculator
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Share This Product:
Features
BUILT FOR FAST CUTTING AND QUICK DRYDOWN
Turn standing crop into fast-drying windrows or swaths with amazing speed using one of New Holland's Discbine® disc mower-conditioners. They slice through thick, tangled wet crops and mow through fire ant hills or gopher mounds without missing a beat. The Discbine line ranges from seven-disc models that cut a nine-foot swath up to 12-disc models that sweep through more than 15 feet at a time.
Specifications
|
Type |
Chevron-design intermeshing molded rubber rolls hood liner |
|
Length, in. (mm) |
102 (2591) |
|
Diameter, in. (mm) |
10.4 (264) |
|
Drive |
4 HB V-belt and enclosed gears |
|
Speed, rpm |
740 |
|
Conditioner Adjustment |
Single crank adjustable roll pressure and two stop bolts to adjust roll gap |
| Dimensions | |
|
Height, Transport, ft. in. (m) |
6' 8" (2.6) |
|
Height, Operating, ft. in. (m) |
5' 8" (1.7) |
|
Width, Transport, ft. in. (m) |
13' 2" (4.0) with standard drawbar hitch, 2-pt swivel hitch or drawbar swivel hitch |
|
Width, Operating, ft. in. (m) |
19' 5" (5.9) with standard drawbar hitch |
|
Width, Operating, ft. in. (m) |
21' 3" (6.5) with 2-pt swivel hitch |
|
Width, Operating, ft. in. (m) |
19' 7" (5.9) with drawbar swivel hitch |
|
Length, Transport, ft. in. (m) |
24' 7" (7.2) with standard drawbar hitch |
|
Length, Transport, ft. in. (m) |
26' 5" (8.1) with 2-pt swivel hitch |
|
Length, Transport, ft. in. (m) |
25' 5" (7.4) with drawbar swivel hitch |
|
Length, Operating, ft. in. (m) |
20' 2" (5.8) ) w/std drawbar hitch |
|
Length, Operating, ft. in. (m) |
22' 1" (6.7) w/2-pt swivel hitch |
|
Length, Operating, ft. in. (m) |
21' 1" (6.1) w/drawbar swivel hitch |
|
Weight, Operating lbs. (kg) |
5,800 (2631) |
| Drive | |
|
|
1000 rpm PTO, enclosed gears and four HB belt |
| Drive Protection | |
|
|
Slip clutch and over-running clutch |
| Hydraulics | |
|
Hydraulic swing |
Standard (double-acting cylinder) |
|
Hydraulic lift |
Standard (operated by two single-acting cylinders; master/slave) |
|
Hydraulic tilt |
Standard (operated by single-acting cylinder and incorporated into the lift system) |
| Material Discharge | |
|
Swath, ft. (mm) |
8 (2438) |
|
Windrow, ft. (mm) |
Adjustable from 3 to 8 (914 to 2438) |
| MowMax™Cutterbar with ShockPRO™Hubs | |
|
Number of discs |
10 |
|
Number of knives |
20 (2 per disc) |
|
Speed, rpm |
3000 |
|
Cutting width, ft. in. (mm) |
13 (3960) |
|
Cutting angle |
2 to 10 degrees, hydraulic control |
|
Cutting height, in. (mm) |
0.95 to 3.2 (24 to 81) with standard skid shoes |
|
Ground clearance with header fully raised, in. (mm) |
18 (457) |
|
Flotation |
Vertical and lateral, adjustable springs |
| Speeds | |
|
Operating, mph (kph) |
0 to 9 (0 to 14.5) |
|
Transport, mph (kph) |
20 (32) |
| Tractor Requirement | |
|
|
90 PTO hp (67 kW) or greater with standard Category II, or Category III drawbar or Category III 3-point hitch. |
|
|
All models require two remote hydraulic valves capable of 1500 psi (10343 kPa), 7-pin SAE J560 connector for transport lights. |
| Tubeless Ag Rib Implement Tires | |
|
Size |
31 x 13.5-15 |
