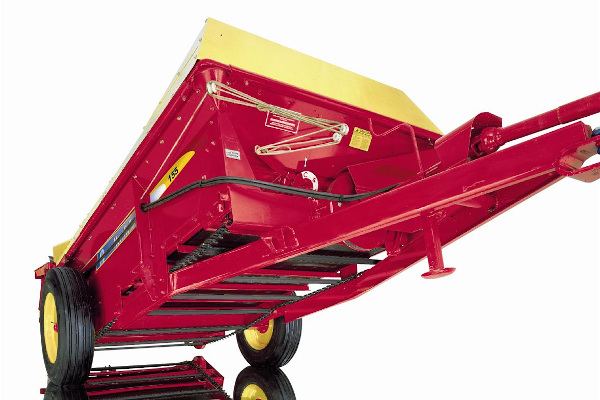

New Holland 155
Double tap to zoom
Box Spreaders 155
HEAPED, SINGLE BEATER, CU. FT (M³)
217 (6.14)
HEAPED, DOUBLE BEATER, CU. FT. (M³)
261 (7.39)
-
Get a Quote
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
-
Request Brochure
Request Brochure
Fields with asterisks* are required.
-
Send to a Friend
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
-
Payment Calculator
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Share This Product:
Features
Box Spreaders
THE INDUSTRY'S BEST-SELLING "STRONG BOXES"
New Holland box spreaders — known as strong boxes — are engineered to produce an even spread pattern and are built to last. These top sellers have the toughest floors and sides of any spreaders available, featuring steel that is more corrosion-resistant and stronger than ordinary steels for unmatched durability.
Box Spreaders
ENGINEERED FOR DURABILITY
Building the best box spreaders in the industry means providing the rugged construction needed for reliable performance. It starts with extra steel frame members in the spreader's undercarriage for increased box strength, plus, standard heavy-duty axles with high-strength steel plates and spindles for reduced frame stress.
Specifications
| 155 | |
| Capacities (ASAE Ratings according to ASAE Std. ASAE S324T) | |
| Heaped, single beater, cu. ft (m³) | 217 (6.14) |
| Heaped, double beater, cu. ft. (m³) | 261 (7.39) |
| Struck level, cu. ft. (m³) | 132 (3.74) |
| Struck level, slurry sides, cu. ft. (m³) | 173 (4.90) |
| Bushels - Old Rating | 210 |
| Maximum net load lb. (kg) | 10,000 (4536) |
| Dimensions | |
| Inside width of bed, inches (m) | 60.9 (1.55) |
| Overall width, inches (m) (w/11.00x22.5 tires) | 92.5 (2.35)** |
| Inside bed depth, top of flare, inches (m) | 154.3 (3.92) |
| Inside bed length, inches (m) | 128.3 (3.26) |
| Overall length, inches (m) | 224.4 (5.70) |
| Height to top of upper beater, inches (m) | 63.8 (1.62) |
| Wheel tread, inches (m) (w/11.00x22.5 tires) | 80.5 (2.05) |
| Tractor requirements+ | |
| Power, minimum PTO horsepower (kW) | 50 (37) |
| PTO speeds, RPM | 540/1,000++ |
| Number of Apron Speeds | |
| Mechanical drive | 2 (plus 1 slow-speed option) |
| Hydraulic drive | NA |
| Speeds | - |
| Fast fpm (mpm) | 8 (2.44) |
| Slow fpm (mpm) | 4.5 (1.37) |
| Optional Slow fpm (mpm) | 2.24 (0.68) |
| Hydraulic fpm (mpm) | NA |
| Number of Beater Paddles | |
| Number of Beater Paddles | 12 |
| Weight | |
| Hubs only, pounds (kg) | 1,902 (865) |
| Apron chain availability | |
| T-Rod | Standard |
| Pintle | Optional |
| Pintle chain, single | D667-X Heavy Duty |
| Pintle chain, double | NA |
| Hydraulic drive orbit motor displ. in³/rev (cm³) | NA |
| Hydraulic drive orbit motor flow limit gpm (lpm) | NA |
| Hydraulic drive flow divider relief pressure psi (bar) | NA |
