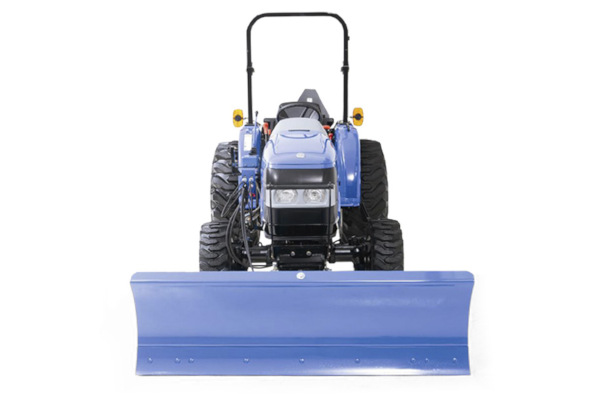

New Holland 60CBH
Double tap to zoom
Front Blades 60CBH
MOLDBOARD WIDTH
60"
MOLDBOARD HEIGHT
22"
-
Get a Quote
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
-
Request Brochure
Request Brochure
Fields with asterisks* are required.
-
Send to a Friend
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
-
Payment Calculator
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Share This Product:
Features
WHEN PUSH COMES TO SHOVE, ATTACH A FRONT BLADE
Handle a variety of jobs more easily, from moving material, grading a path or clearing snow in the winter. Choose from a bolt-on model or a range of Quick-Attach front blades that you can change quickly without tools.
QUICK-ATTACH MODELS
The Quick-Attach system allows you to quickly change blades without tools and feature a spring-trip design, which allows the blade to pivot when it hits an obstruction. Reinforced moldboards provide extra protection against bending under difficult working conditions, and optional rubber cutting edges are available for delicate blade work.
HYDRAULIC ANGLING
Hydraulic power makes it easy to adjust the blade angle and height up to 30 degrees. An ergonomic joystick provides simple control of material delivery.
ADJUSTABLE SKID SHOES
Skid shoes prevent gouging by maintaining the blade at a preset height.
DURABLE, REPLACEABLE CUTTING EDGE
The cutting edge is made of heat-treated, high-carbon steel. It's replaceable and reversible and bolts on for long life and easy maintenance.
Specifications
| Specifications | 60CBH |
| Moldboard width | 60" |
| Moldboard height | 22" |
| Moldboard thickness | 1/4" |
| Cutting edge thickness | 1/2" |
| Cutting edge height | 6" |
| Reversible cutting edge | Standard |
| Blade lift height | 8" |
| Digging depth | 6.5" |
| Max blade angle | 30 degrees |
| Adjustable skid shoes | Standard |
| Quick Attach | Yes |
| Manual angle | n/a |
| Hydraulic angle | Standard |
| Weight | 399 lbs. |
