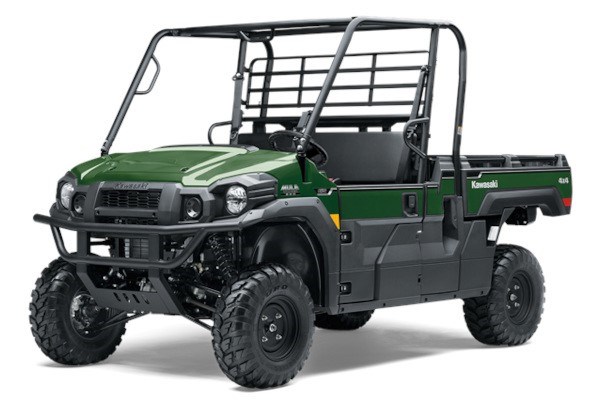

Kawasaki 2026 MULE PRO-FX™ 820 EPS
Double tap to zoom
2026 MULE PRO-FX™ 820 EPS
MULE PRO-FX™ 820
Overview:
ADDITIONAL VEHICLE FEATURES:
- Massive 20-sq-ft cargo bed
- Continuously Variable Transmission (CVT)
- Electrically selectable 2WD/4WD/dual-mode rear differential with diff. lock
- Rack-and-pinion steering
- Speed-sensitive Electric Power Steering (EPS)
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
CARGO BED
LARGEST IN CLASS
It’s easy to get the job done quicker when you can flat-load an entire standard-sized wooden pallet into the cargo bed, haul up to 1,000 lbs*, and tow up to 2,000 lbs.
POWER
SPEED & STRENGTH
A powerful 812cc, 3-cylinder engine features massive torque for hauling and towing heavy loads across rugged terrain.
DURABILITY
BUILT STRONG
Ladder-type construction of the welded main frame optimizes flex, rigidity, and strength while intelligent design features help protect vital components.
COMFORT
ROOM TO RIDE
A spacious cabin provides exceptional riding comfort thanks to 4-wheel independent suspension and enough cabin space to fit 3 full-size adults comfortably.
Specifications
| POWER | |
| Engine | 4-stroke, 3-cylinder, DOHC, liquid-cooled, gas |
| Displacement | 812cc |
| Maximum Torque | 48.0 lb-ft @ 3,500 rpm |
| Bore x Stroke | 72.0 x 66.5mm |
| Compression Ratio | 9.5:1 |
| Fuel System | DFI® with 34mm throttle body (3) |
| Transmission | Continuously Variable Transmission (CVT) with (H,L,N,R) |
| Final Drive | Selectable 2WD/4WD, shaft. Dual mode rear differential with differential lock |
| Engine Braking | Yes |
| Alternator Output (max) | 75 amp |
| CAPABILITY | |
| Front Suspension / Wheel Travel | Double wishbone/8.7 in |
| Rear Suspension / Wheel Travel | Double wishbone/8.5 in (L)/8.7 in (R) |
| Front Tires | 26 x 9-12, radial |
| Rear Tires | 26 x 11-12, radial |
| Wheel Type | Alloy |
| Steering | Rack-and-pinion w/ Electric Power Steering (EPS), Tilt steering |
| Front Brakes | Dual disc, 2-piston caliper |
| Rear Brakes | Dual disc, 1-piston caliper |
| Park Brake Type | Independent, mechanical disc |
| Ground Clearance | 10.4 in |
| Fuel Capacity | 7.9 gal |
| Turning Radius | 16.0 ft |
| Cargo Bed Dimensions (LxWxH) | 54.1 x 53.3 x 11.0 in |
| Cargo Bed Load Capacity | 999/600 lb CA Model |
| Payload Capacity | 1,616.3/1,263.5 lb CA Model |
| Seating Capacity | 3 |
| Towing Capacity | 2,000 lb |
| Lighting | (2) Halogen headlights |
| DETAILS | |
| Overall Length | 133.3 in |
| Overall Width | 64.0 in |
| Overall Height | 77.4 in |
| Estimated Dry Weight | 1,770.6/1,772.8 lb** CA Model |
| Curb Weight | 1,852.2/1,854.4 lb* CA Model |
| Wheelbase | 92.3 in |
| Instruments | Multi-function display includes digital speedometer, fuel gauge, odometer, hour meter, clock, dual trip meters, 2WD/4WD indicator, water temperature warning indicator, oil pressure warning indicator, fuel injection warning indicator, CVT warning indicator, neutral, reverse and parking indicators, seatbelt reminder lamps |
| Color Choices | Timberline Green, Dark Royal Red |
