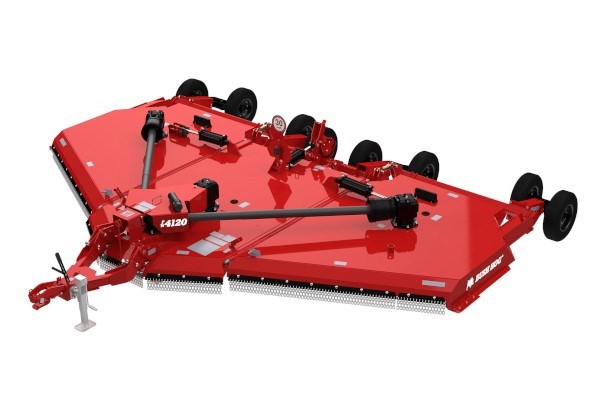

Bush Hog 4120

Performance Features

• New Patent-Pending axle suspension reduces g-force shock loads by 37%
• Replaceable 1/2″ Cast Wing Skids for extended wear during heavy ground contact
• Angled rear deck section with 41% longer skids improve durability during side and backward impacts
• New durable Cast Leveling Rod Cams make adjusting deck pitch easier
• New Cast Walking Tandem Axles walk over the most rugged terrain instead of bounce through it
• Center section axle spindles are centered on the axle arm for equalized loading of vertical forces
• Grease fittings and spring steel bushings at axle pivot points for longer life
• Wing decks free float 22° down and 45° up without engaging the hydraulic cylinder for longer cylinder life
• Wing axles are adjustable left to right for variable row crop spacings
• New Rollover and Clevis Stops on the Perma-Level+ Hitch make tractor hookups easier
• Increased Cutting and Transport Height to mow down taller vegetation and easier loading on trailers

Construction Features

• Industry first — 3″ O.D. output shaft in cutting gearboxes
• Smooth-top 7ga deck plates are heavily-reinforced for years of trouble-free service
• Stronger gearbox mount and stand are built to withstand years of punishing mowing conditions
• Blade pans come standard with Hardened Hex-Head Blade Bolts and Bushings for easy blade changes
• 194% increase in axle arm section for substantially improved strength
• ASAE Cat 6 Input Drivelines and ASAE Cat 5 Wing Drivelines for strength in heavy cutting conditions
• Grease fittings in our E-Z lube drivelines align for reduced service times
• Patented oil sight windows make for quick and easy oil level checks
• Large, replaceable skids behind the tongue protect deck structure from ground contact

Safety Features

• Single or Double Row Chains to knock down flying debris
• Transport Lock supports the cutter while transporting
• Wing locks hold the wings stable when in an upright position
• Rollover and Clevis Stops reduce rotating and swinging hitch components while attaching to tractor drawbar
• 360° coverage around rotating drivelines
• LED safety lighting standard

Product Features

• (4) custom-tuned rubber isolators on the center axle absorb damaging shock loads before going through the deck and eventually to the tractor
• Improved structural framework with durable Deck Rings standard
• New Cast Walking Tandem Axle selection strolls over rough terrain with ease
• Axle Arms increased from 5.25″ x 6.5″ welded channel to 6″ x 8″ structural tube for superior strength in this high-stress area
• The SR1 model is equipped with two additional flat blades per cutting circle that can be fitted with an optional cross bar and two additional blades.
• Each axle cuff houses a performance-matched rubber isolator to reduce shock from the moment it begins
• 1/2″ replaceable cast skids and longer formed skids help protect the 1/4″ x 13″ sidebands
• Round Pan with Hardened Hex-Head Blade Bolts and Bushings make blade changes quick and easy
• Take the load off with our Patent Pending Driveline Assist that raises heavy CV Drivelines into tractor PTO position
• The optional Shredder Kit adds a crossbar and two additional blades to the SR1 Model
