Bobcat WB0736ST
Double tap to zoom
WB0736ST
Walk-Behind Mowers
Overview:

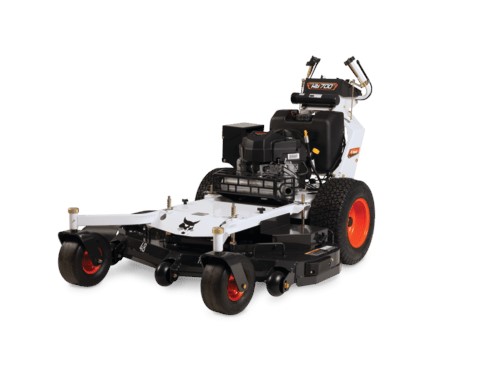

The WB700 zero-turn mower is a maneuverable, mid-size walk-behind machine with a powerful hydraulic drive that fights operator fatigue and minimizes ground disturbance.
- Compact size provides precision
- Maneuverability for mowing around obstacles and highly landscaped environments
- Rugged TufDeck™ cutting system
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Pro-Grade Engine Performance
Summon all the pro-grade power you need to get more done. With versatile, high-performance Kawasaki engines ranging from 23 hp to 37 hp, you get the engine performance you need to power through job after job – faster and more efficiently. Bobcat zero-turn mowers deliver the power and speed you need for hours of uncompromising mowing that leaves your work a cut above the rest.
Maintenance Made Easy
Easy to Own. Efficient to Maintain.
Specifications
| WB700 Key Specifications | |
|---|---|
| Engine Model | Kaw FS481 |
| Displacement | 603 cubic cm |
| Transmission Type | Hydro-Gear ZT-2800 transaxles |
| Pump Displacement | 10 cubic cm |
| Cutting Height Range | 1.5-4.5 in. (38-114 mm) |
| Mower Deck | TufDeck 10-gauge Top with 7-gauge Spindle Supports; 7-gauge Side Skirts |
| Width | 36 in |
| Engine | |
| Fuel Tank | 5 gal |
| Horsepower | 14.5 hp |
| Performance | |
| Machine Weight - Wet | 773 lbs |
| Transmission | |
| Travel Speed | 6.5 mph |
| Travel Speed - Reverse | 3 mph |
| Wheels | |
| Front Caster Wheel Size | 11 x 6 |
| Caster Arm | Welded to Frame |
| Drive Wheel Size | 20" Zero-T Tread pattern |
| Frame | |
| Front and Rear | Welded, 7-gauge Steel; 1.5 x 2.5 in. Steel Tubing |
| Length | 76 in |
| Deck | |
| Discharge Chute | Flexible Molded Polymer |
| Mower Blade Tip Speed | 18645 ft/min |
