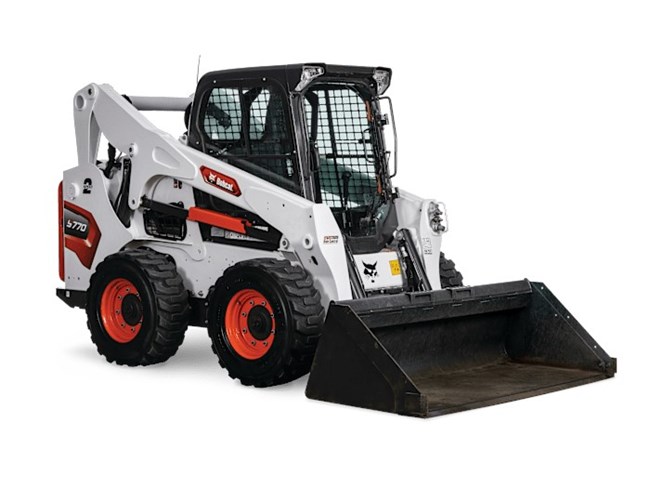

Bobcat S770
Double tap to zoom
S770
Skid-Steer Loaders
Overview:
When the job pushes for higher output and performance, the Bobcat® Classic S770 skid-steer loader is ready. Using powerful hydraulics and proven durability, the S770 excels on hard surfaces in high-demand applications like roadwork, snow removal and heavy material movement.
Special Offers
$79,261
Starting at USD**
9314 lbs
Operating Weight
92 hp
Horsepower
67
Available Attachments
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Specifications
| S770 Key Specifications | |
|---|---|
| S770 | |
| Horsepower | 92 hp |
| Rated Operating Capacity | 3350 lbs |
| Tipping Load | 6700 lbs |
| Operating Weight | 9154 lbs |
| Travel Speed - High (1-Speed) | 7.1 mph |
| Travel Speed - Low (2-Speed) | 7.1 mph |
| Travel Speed - High (2-Speed) | 12.3 mph |
| Auxiliary Std Flow | 23 gpm |
| Auxiliary High Flow | 36.6 gpm |
| Aux System Pressure | 3500 psi |
| Length without Attachment | 114.4 in |
| Overall Width | 72.1 in |
| Overall Height | 81.3 in |
| Height to Hinge Pin | 132 in |
| Reach @ Maximum Height | 33.4 in |
| Engine | |
| S770 | |
| Horsepower | 92 hp |
| Performance | |
| S770 | |
| Rated Operating Capacity 300 lb. Counterweight | 3550 lbs |
| Rated Operating Capacity 200 lb. Counterweight | 3500 lbs |
| Rated Operating Capacity 400 lb. Counterweight | 3650 lbs |
| Rated Operating Capacity | 3350 lbs |
| Tipping Load | 6700 lbs |
| Operating Weight | 9154 lbs |
| Travel Speed (2-speed option) | 12.3 mph |
| Travel Speed - High (1-Speed) | 7.1 mph |
| Travel Speed - Low (2-Speed) | 7.1 mph |
| Travel Speed - High (2-Speed) | 12.3 mph |
| Capacities | |
| S770 | |
| Fuel Tank | 23.9 gal |
| Hydraulic System | |
| S770 | |
| System Relief @ Quick Couplers | 2450 psi |
| Auxiliary Std Flow | 23 gpm |
| Auxiliary High Flow | 36.6 gpm |
| Aux System Pressure | 3500 psi |
| Dimensions | |
| S770 | |
| Length with Standard Bucket | 141.1 in |
| Length without Attachment | 114.4 in |
| Width (with bucket) | 74 in |
| Overall Width | 72.1 in |
| Overall Height | 81.3 in |
| Height to Hinge Pin | 132 in |
| Reach @ Maximum Height | 33.4 in |
| Turning Radius | 83.7 in |
| Wheelbase | 48.3 in |
| Standard Bucket | 74 in |
| Standard Tires | 12 X 16.5 |
| Instrumentation | |
| S770 | |
| Fuel Gauge | Yes |
| Hourmeter | Yes |
| Engine Coolant Temperature | Yes |
| Engine Air Filter | Replaceable dry paper cartridge with separate safety element |
| Engine Oil Pressure | Yes |
| Features | |
| S770 | |
| Joystick Control | Optional |
| Air Conditioning | Optional |
| Adjustable Seat | Standard |
| Backup Alarm | Standard |
| BICS System (Interlock) | Standard |
| Cab Enclosure | Optional |
| Sound Option | Optional |
| Cab Heater | Optional |
| Operating Lights | Standard |
| Parking Brake | Standard |
| Radio | Optional |
| Turbocharged Engine | Standard |
| Rear Window | Standard |
| Top Window | Standard |
| Lift-Arm Support | Standard |
| Seat Belt | Standard |
| Suspension Seat | Standard |
| Two Speed Travel | Standard |
| Deluxe Instrumentation | Optional |
| Engine Shutdown | Standard |
| Hydraulic Bucket Positioning | Optional |
| High Flow Option | Optional |
| Auxiliary Hydraulics | Standard |
| Spark Arrestor Muffler | Standard |
| Bob-Tach Attachment System | Standard |
| Power Bob-Tach | Optional |
| ACS (Switchable Controls) | Optional |
| Ride Control | Optional |
| Rear Hydraulics | Optional |
| Horn | Standard |
