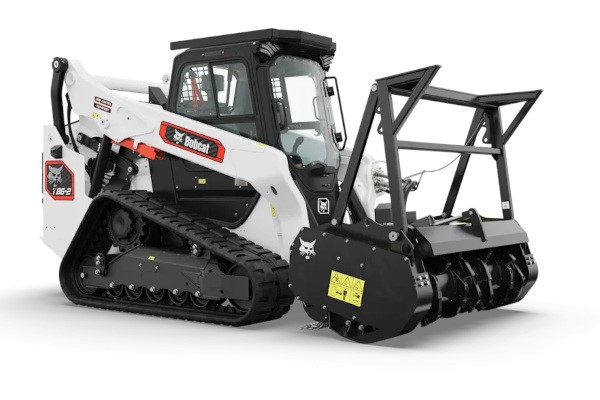

Bobcat T86-2
Double tap to zoom
T86-2
Pro Loaders
Overview:
The Bobcat® Pro T86-2 compact track loader is built for the most demanding environments like forestry, road construction, demolition and more. It combines maximum lift height, powerful hydraulics, premium cooling performance and advanced control, delivering strength and precision in a compact machine.
Special Offers
$120,586
Starting at USD**
115 hp
Horsepower
3925 lbs
ROC Solid Undercarriage
60
Available Attachments
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Integrated In-Machine Cooling System
Industry-leading integrated in-machine cooling helps maintain peak performance during long workdays, even under load. It's built to support consistent output without overheating when the pace of work stays high.
Precision Drive Software
Selectable Joystick Controls (SJC) with precision drive software deliver smooth motion and faster response for more precise operation.
Four Drive Modes
Balanced, Agile, Dynamic and Charged drive modes let operators tailor machine drive response to their working style and the task at hand.
Super-Flow Hydraulics
Only the T86-2 compact track loader and S86-2 skid-steer loader offer three hydraulic flow options – standard, high and super flow – setting a new standard for performance with up to 42 gallons per minute to run demanding attachments.
Redesigned Electrical System
A redesigned electrical system helps improve reliability in wet and dusty conditions with upgraded sealing, optimized routing and better-protected components.
Jobsite Companion
Available in the Advanced package, Jobsite Companion adds voice-activated machine functions, automated attachment settings and real-time job insights.
Bobcat Sense Detection Systems
Select either Rear Object Detection & Avoidance to detect objects behind the machine or 360 People Detection to detect people within a 360-degree field of view.
Bobcat View Camera Systems
Standard rear or optional broad‑area camera systems provide additional views when backing up, working in tight spaces and operating near obstacles.
Specifications
| T64-2 Key Specifications | T86-2 |
| Horsepower | 115 hp |
| ROC Solid Undercarriage | 3925 lbs |
| Operating Weight | 12104 lbs |
| Travel Speed - Low (2-Speed) | 5.5 mph |
| Travel Speed - High (2-Speed) | 10.7 mph |
| Auxiliary Std Flow | 23 gpm |
| Auxiliary High Flow | 36.6 gpm |
| Aux System Pressure | 3500 psi |
| Aux System Pressure (Super) | 4061 psi |
| Auxiliary Super Flow | 42 gpm |
| Length without Attachment | 120.4 in |
| Overall Width | 78 in |
| Overall Height | 83.1 in |
| Height to Hinge Pin | 144 in |
| Reach @ Maximum Height | 34.5 in |
| ENGINE | |
| Horsepower | 115 hp |
| Battery Size | 1000A CC |
| Engine-High Idle | 2600 |
| Engine-Low Idle | 1050 |
| Pre-Heat | Yes |
| PERFORMANCE | |
| Rated Operating Capacity 200 lb. Counterweight | 4075 lbs |
| Rated Operating Capacity with Torsion | 3700 lbs |
| Rated Operating Capacity 400 lb. Counterweight | 4225 lbs |
| ROC Solid Undercarriage | 3925 lbs |
| Rated Operating Capacity 300 lb. Counterweight | 4150 lbs |
| Tipping Load | 11214 lbs |
| Operating Weight | 12104 lbs |
| Travel Speed - Low (2-Speed) | 5.5 mph |
| Travel Speed - High (2-Speed) | 10.7 mph |
| Ground Pressure (Rubber) | 4.6 psi |
| CAPACITIES | |
| Fuel Tank | 31.6 gal |
| HYDRAULIC SYSTEM | |
| Hydraulic High Flow (optional) | 36.6 gpm |
| System Relief @ Quick Couplers | 3500 psi |
| Auxiliary Std Flow | 23 gpm |
| Auxiliary High Flow | 36.6 gpm |
| Aux System Pressure | 3500 psi |
| Aux System Pressure (Super) | 4061 psi |
| Auxiliary Super Flow | 42 gpm |
| DIMENSION | |
| Ground Pressure (Standard Tracks) | 4.6 psi |
| Length with Standard Bucket | 148.9 in |
| Length without Attachment | 120.4 in |
| Overall Width | 78 in |
| Overall Height | 83.1 in |
| Height to Hinge Pin | 144 in |
| Reach @ Maximum Height | 34.5 in |
| Turning Radius | 85.1 in |
| Length of track on ground | 66.3 in |
| Track Width | 17.7 in |
| Track Width - Optional | 17.7 in |
| FEATURES | |
| Joystick Control | Standard |
| Air Conditioning | Standard |
| 5-Link Torsion Suspension Undercarriage | Optional |
| Standard Display (includes keyless start) | Standard |
| Dual-Direction Bucket Positioning | Standard |
| Heated Cloth Air-Ride Seat | Standard |
| Speed Management | Standard |
| Reversing Fan | Optional |
| Radio Remote Control (SJC Required) | Optional |
| Pressure Release Hydraulic Quick Couplers | Standard |
| LED Front and Rear Lights | Standard |
| Backup Alarm | Standard |
| BICS System (Interlock) | Standard |
| ROPS/FOPS Approved | Standard |
| ROPS-Step | N/A |
| Sound Option | Standard |
| Heater Air Conditioning | Standard |
| Radio | Optional |
| Turbocharged Engine | Standard |
| Grab Handles | N/A |
| Suspension Seat | Not Applicable |
| Two Speed Travel | Standard |
| Lockable Ignition | N/A |
| Auxiliary Hydraulics | Standard |
| 3-Spool Valve | N/A |
| Grease Track Tension | Optional |
| Bob-Tach Attachment System | Standard |
| Power Bob-Tach | Standard |
| Ride Control | Optional |
| Horn | Standard |
