T76-2
Pro Loaders
Overview:

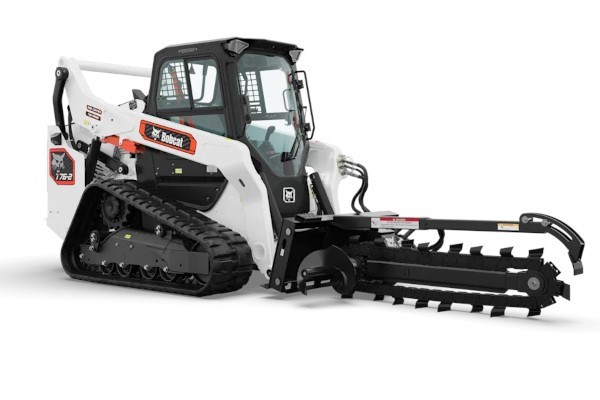

The Bobcat® Pro T76-2 compact track loader delivers the class-leading controllability, performance and advanced technology professional operators need for demanding construction, landscaping or utility jobsites.
Special Offers
$98,822
Starting at USD**
74 hp
Horsepower
2900 lbs
ROC Solid Undercarriage
64
Available Attachments
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Two-Speed Travel
Spend less time traveling across the jobsite or between jobs with two-speed standard on Pro models. Move faster — and get the job done sooner.
Integrated In-Machine Cooling System
Industry-leading integrated in-machine cooling helps maintain peak performance during long workdays, even under load. It is built to support consistent output without overheating when the pace of work stays high.
Non-DPF Engine
Engines meet emissions requirements without a diesel particulate filter (DPF), eliminating the need for time-consuming regeneration.
Precision Drive Software
Selectable Joystick Controls (SJC) with precision drive software deliver smooth motion and faster response for more precise operation.
Four Drive Modes
Balanced, Agile, Dynamic and Charged drive modes let operators tailor machine drive response to their working style and the task at hand.
Jobsite Companion
Available in the Advanced package, Jobsite Companion adds voice-activated machine functions, automated attachment settings and real-time job insights.
Bobcat Sense Detection Systems
Select either Rear Object Detection & Avoidance to detect objects behind the machine or 360 People Detection to detect people within a 360-degree field of view.
Bobcat View Camera Systems
Standard rear or optional broad‑area camera systems provide additional views when backing up, working in tight spaces and operating near obstacles.
Specifications
| T64-2 Key Specifications | T76-2 |
| Horsepower | 74 hp |
| ROC Solid Undercarriage | 2900 lbs |
| Operating Weight | 9592 lbs |
| Travel Speed - Low (2-Speed) | 6.8 mph |
| Travel Speed - High (2-Speed) | 9.2 mph |
| Auxiliary Std Flow | 23.3 gpm |
| Auxiliary High Flow | 30.3 gpm |
| Aux System Pressure | 3500 psi |
| Length without Attachment | 114 in |
| Overall Width | 73.5 in |
| Overall Height | 81.9 in |
| Height to Hinge Pin | 128.3 in |
| Reach @ Maximum Height | 36.3 in |
| ENGINE | |
| Horsepower | 74 hp |
| Battery Size | 1000A CC |
| Engine-High Idle | 2600 |
| Engine-Low Idle | 1050 |
| Pre-Heat | Yes |
| PERFORMANCE | |
| Rated Operating Capacity 200 lb. Counterweight | 3025 lbs |
| Rated Operating Capacity with Torsion | 2800 lbs |
| ROC Solid Undercarriage | 2900 lbs |
| Rated Operating Capacity 300 lb. Counterweight | 3100 lbs |
| Tipping Load | 8285 lbs |
| Operating Weight | 9592 lbs |
| Travel Speed - Low (2-Speed) | 6.8 mph |
| Travel Speed - High (2-Speed) | 9.2 mph |
| Ground Pressure (Rubber) | 5.8 psi |
| CAPACITIES | |
| Fuel Tank | 31.7 gal |
| HYDRAULIC SYSTEM | |
| System Relief @ Quick Couplers | 3500 psi |
| Auxiliary Std Flow | 23.3nbsp;gpm |
| Auxiliary High Flow | 30.3 gpm |
| Aux System Pressure | 3500 psi |
| DIMENSION | |
| Ground Pressure (Standard Tracks) | 58 psi |
| Length with Standard Bucket | 142.3 in |
| Length without Attachment | 114 in |
| Overall Width | 73.5 in |
| Overall Height | 81.9 in |
| Height to Hinge Pin | 128.3 in |
| Reach @ Maximum Height | 36.3 in |
| Turning Radius | 85.3 in |
| Length of track on ground | 59.2 in |
| Track Width | 12.6 in |
| Track Width - Optional | 17.7 in |
| FEATURES | |
| Joystick Control | Optional |
| Air Conditioning | Optional |
| 5-Link Torsion Suspension Undercarriage | Optional |
| Heated Cloth Air-Ride Seat | Standard |
| Backup Alarm | Standard |
| BICS System (Interlock) | Standard |
| Cab Enclosure | Optional |
| ROPS/FOPS Approved | ROPS Level 1 Standard; ROPS Level 2 Optional |
| ROPS-Step | N/A |
| Sound Option | Standard |
| Cab Heater | Standard |
| Heater Air Conditioning | Optional |
| Operating Lights | Standard |
| Work Lights | Standard |
| Radio | Optional |
| Turbocharged Engine | Standard |
| Rear Window | Standard |
| Top Window | Standard |
| Lift-Arm Support | Standard |
| Grab Handles | N/A |
| Seat Belt | Standard 2-Point Lap Belt with Suspension Seat and Standard 3-Point Shoulder Belt with Heated Cloth Air Ride Seat on Two-Speed Models |
| Suspension Seat | Standard |
| Two Speed Travel | Optional |
| Deluxe Instrumentation | Optional |
| Lockable Ignition | N/A |
| Engine Shutdown | Standard |
| Hydraulic Bucket Positioning | Standard |
| High Flow Option | Optional |
| Auxiliary Hydraulics | Standard |
| 3-Spool Valve | N/A |
| Grease Track Tension | Standard |
| Purifier Muffler Opt | Not Applicable |
| Spark Arrestor Muffler | DOC |
| Bob-Tach Attachment System | Standard |
| Power Bob-Tach | Standard |
| ACS (Switchable Controls) | Not Applicable |
| Ride Control | Optional |
| Rear Hydraulics | Optional |
| Horn | Standard |
