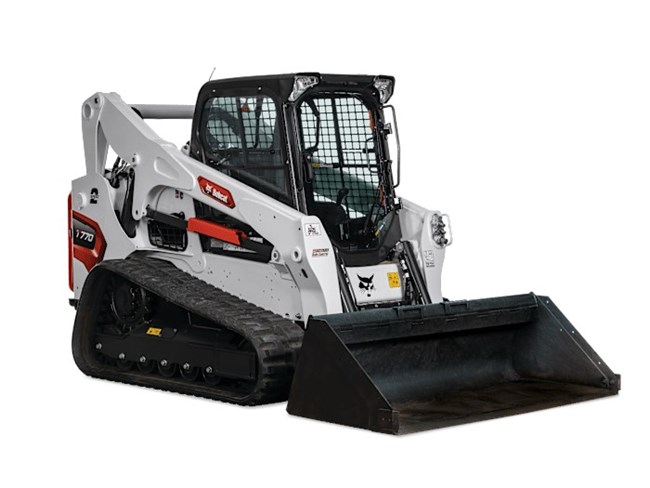

Bobcat T770
Double tap to zoom
T770
Classic Loaders
Overview:
Looking for heavy-duty performance without unnecessary complexity? The Classic T770 is the largest and most powerful machine in the Bobcat® Classic loader lineup, combining maximum lift strength with rugged durability for demanding jobs like construction, demolition, land management and more.
Special Offers
$88,230
Starting at USD**
92 hp
Horsepower
3475 lbs
ROC Solid Undercarriage
57
Available Attachments
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Specifications
| Features | |
|---|---|
| Serviceability | |
| Dimensions | |
| Hydraulic System | |
| Capacities | |
| Performance | |
| Engine | |
| T770 Key Specifications | |
| T770 | |
| Horsepower | 92 hp |
| ROC Solid Undercarriage | 3475 lbs |
| Operating Weight | 10515 lbs |
| Travel Speed (1-Speed) | 6.6 mph |
| Travel Speed - Low (2-Speed) | 6.1 mph |
| Travel Speed - High (2-Speed) | 10.7 mph |
| Auxiliary Std Flow | 23 gpm |
| Auxiliary High Flow | 36.6 gpm |
| Aux System Pressure | 3500 psi |
| Length without Attachment | 113.3 in |
| Overall Width | 78 in |
| Overall Height | 81.3 in |
| Height to Hinge Pin | 132 in |
| Reach @ Maximum Height | 34.9 in |
| T770 | |
| Horsepower | 92 hp |
| Alternator | 90A |
| Battery Size | 1000A |
| Engine-High Idle | 2400 RPM |
| Engine-Low Idle | 1050 RPM |
| Air Cleaner Elements | Replacable dry paper cartridge with seperate safety element |
| T770 | |
| Rated Operating Capacity 200 lb. Counterweight | 3575 lbs |
| Rated Operating Capacity 300 lb. Counterweight | 3650 lbs |
| Rated Operating Capacity 400 lb. Counterweight | 3725 lbs |
| ROC Solid Undercarriage | 3475 lbs |
| Tipping Load | 9929 lbs |
| Operating Weight | 10515 lbs |
| Travel Speed (1-Speed) | 6.6 mph |
| Travel Speed - Low (2-Speed) | 6.1 mph |
| Travel Speed - High (2-Speed) | 10.7 mph |
| Ground Pressure (Rubber) | 4.2 psi |
| T770 | |
| Fuel Tank | 43.8 gal |
| T770 | |
| System Relief @ Quick Couplers | 3450 psi |
| Auxiliary Std Flow | 23 gpm |
| Auxiliary High Flow | 36.6 gpm |
| Aux System Pressure | 3500 psi |
| T770 | |
| Ground Pressure (Standard Tracks) | 4.2 psi |
| Length with Standard Bucket | 141.6 in |
| Length without Attachment | 113.3 in |
| Overall Width | 78 in |
| Overall Height | 81.3 in |
| Height to Hinge Pin | 132 in |
| Reach @ Maximum Height | 34.9 in |
| Turning Radius | 87.6 in |
| Length of track on ground | 81.7 in |
| Track Width | 17.7 in |
| T770 | |
| Grease Interval (hrs) | 8 hr |
| T770 | |
| Joystick Control | Optional |
| Air Conditioning | Optional |
| Backup Alarm | Standard |
| BICS System (Interlock) | Standard |
| Cab Enclosure | Optional |
| ROPS/FOPS Approved | Standard |
| ROPS-Step | N/A |
| Sound Option | Optional |
| Cab Heater | Optional |
| Heater Air Conditioning | Optional |
| Operating Lights | Standard |
| Work Lights | Standard |
| Turbocharged Engine | Standard |
| Rear Window | Standard |
| Top Window | Standard |
| Grab Handles | N/A |
| Seat Belt | Standard |
| Suspension Seat | Standard |
| Two Speed Travel | Optional |
| Deluxe Instrumentation | Optional |
| Lockable Ignition | N/A |
| Engine Shutdown | Standard |
| Hydraulic Bucket Positioning | Optional |
| High Flow Option | Optional |
| Auxiliary Hydraulics | Standard |
| 3-Spool Valve | N/A |
| Grease Track Tension | Standard |
| Spark Arrestor Muffler | Standard |
| Bob-Tach Attachment System | Standard |
| Power Bob-Tach | Optional |
| ACS (Switchable Controls) | Optional |
| Ride Control | Optional |
| Horn | Standard |
