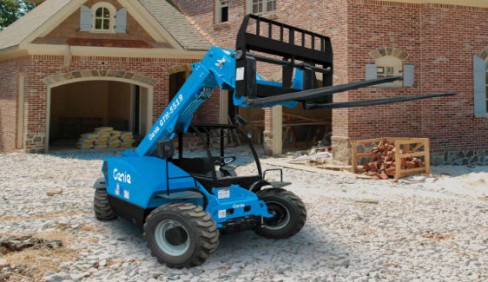

Genie GTH™-5519

Double tap to zoom



Features

Measurements

• 5,500 lb (2,500 kg) maximum
lift capacity
• 18 ft 10 (5.74 m) maximum lift height
• 11ft 3in (3.43m) maximum reach

Productivity

• Full time 4WD
• 4WS
• Operator selectable front, crab,
coordinated steering modes
• Auxiliary hydraulic circuit
• Proportional, reversible, continuous
auxilliary hydraulic flow control
• Genie manual Quick-Attach™ system
• Power assisted steering
• Variable speed hydrostatic drive
• Limited slip front axle differential
• Inboard wet disc service brakes
• Wet disc spring applied parking brake
• 12 x 16.5 in, air-filled rough terrain tires
• Fenders (set of 4)
• ROPS/FOPS canopy
• Single multi-function proportional joystick
• Tilt steering column
• Illuminated gauge and switch panels
• Full gauge cluster with engine
diagnostics
• Machine level indicator
• Right-side screen guard
• 48 inch carriage and pallet forks
• Boom angle indicator
• Reverse motion alarm
• 3 in (7.6 cm) retractable seat belt
• Lift shackle at boom tip
• Telematics ready

Productivity Options

• Fully enclosed cab (includes full glass,
heater, defroster, wipers, washer and
split door)
• Fully enclosed cab with air conditioner
• Adjustable suspension seat
• Flashing beacon
• Work lights (High output LED cab, boom
and rear)
• Road lights (High output LED 2 front
mounted, 1 backup, 2 rear stop/turn/tail)
• Rear proximity alarm
• Fire extinguisher
• Brick guard

Engine Options

• Deutz TD 2.9 L04 Tier 4i diesel 74 hp
(55.4 kW)
• Oil pan heater

Tire Options

• 12 x 16.5 in, solid rough terrain tires
• 12 x 16.5 in, foam-filled rough terrain tires

Attaching System Options

• Universal skid steer adapter
• Secondary auxiliary hydraulics
• Hydraulic Quick-Attach™ system

Attachment Options

• Carriages
- 48 in (1.22 m) side shift carriage,
+/- 5 in (12.7 cm)
- 48 in (1.22 m) rotating fork carriage,
+/- 14°
• Forks
- 60 in (1.52 m) pallet forks (set of two)
2 x 4 x 60 in (.05 x .10 x 1.52 m)
• Buckets
- 66 in bucket with bolt-on cutting
edge, .50/.65 yd3 struck/heaped
- 78 in, .68 yd3 scrap grapple bucket
• 6 ft truss boom
• Universal skid steer adapter

Specifications

Max Lift Capacity 5,500 lb | 2,500 kg
Max Lift Height 19 ft | 5.79 m
Max Forward Reach 11 ft | 3.35 m
Capacity at Max Height 4,400 lb | 1,996 kg
Capacity at Max Reach 1,900 lbs | 862 kg
