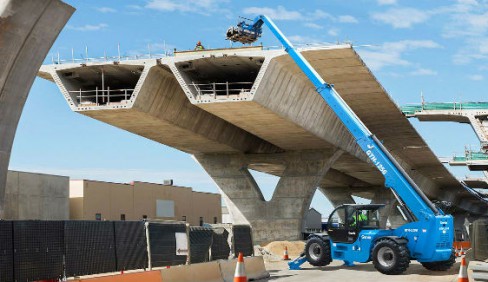

Genie GTH™-1256

Double tap to zoom



Features

Measurements

• 12,000 lbs (5,443 kg) maximum
lift capacity
• 56 ft (17.07 m) maximum lift height
• 42 ft (12.80 m) maximum reach

Productivity

• Full time 4WD
• 4WS
• Operator selectable front, crab,
coordinated steering modes
• 2-speed forward and reverse
“Shift-on-fly” hydrostatic transmission
• Transmission inch valve, brake
pedal actuated
• Proportional frame leveling 7° each side
• Power assisted steering
• Inboard wet disc service brakes
• Wet disc spring applied parking brake
• 17.5 x 25 in. air-filled rough terrain tires
• Front axle differential lock
• High efficiency/variable displacement
hydraulic pump
• Auxiliary hydraulic circuit (15 GPM)
• ROPS/FOPS canopy
• Single, multi-function, proportional joystick
• Machine level indicator
• Full gauge cluster with engine diagnostics
• Right-side screen standard on open cab
• Adjustable suspension seat
• Genie manual Quick-Attach™ system
• Retractable 3 in (7.6 cm) seatbelt
• 60 in (1.52 m) carriage and pallet forks
• Boom angle indicator
• 10 micron hydraulic return filter
• 1,000 cold cranking amps at 0° F (-18° C)
• Reverse motion alarm
• Mirror-LH canopy mounted
• Mirror-RH chassis mounted
• Fenders (set of 4)
• Lift Shackle at boom tip
• Twin front stabilizers

Productivity

• Fully enclosed cab (includes full glass,
defroster, wipers, heater, split door, washer)
• Fully enclosed cab air conditioning
• Flashing beacon
• Work lights (2 cab front mounted, 2 tail)
• Road lights (2 cab front mounts,
1 back-up, 2 rear stop/turn/tail)
• Fire extinguisher
• Brick guard
• Hydraulic Quick-Attach™
• Rear back-up camera
• Rear proximity alarm
• Secondary auxiliary hydraulics circuit

Engine Options

• Deutz TCD3.6 turbocharged diesel,
T4f, 134hp (99kW)
• Cold weather package (includes engine
block heater, oil pan heater and
battery heater)

Tire Options
• 17.5 x 25 in 20-ply foam-filled rough
terrain tires
• 17.5 x 25 in 20-ply air-filled rough
terrain tires

Attachment Options

• Carriages – Quick-Attach™
- 48 in (1.22 m carriage
- 72 in (1.83 m) carriage
- 60 in (1.52 m) rotating carriage
(10° from center left and right)
- 72 in (1.83 m) rotating carriage
(10° from center left and right)
- 60 in dual hydraulic fork positioning
• Forks
- 72 in (1.83 m) pallet forks (set of two)
2.4 x 5.9 x 72 in (.06 x .15 x 1.83 m)
• 7 ft truss boom, 4,400 lbs maximum
lift capacity

Specifications

Max Lift Capacity 12,000 lb | 5,443 kg
Max Lift Height 56 ft | 17.07 m
Max Forward Reach 42 ft | 12.80 m
Capacity at Max Height 7,000 lb | 3,250 kg
Capacity at Max Reach 3,500 lb | 1,588 kg
