Browse EquipmentGenie GTH™-1056
Telehandlers GTH™-1056
Overview:

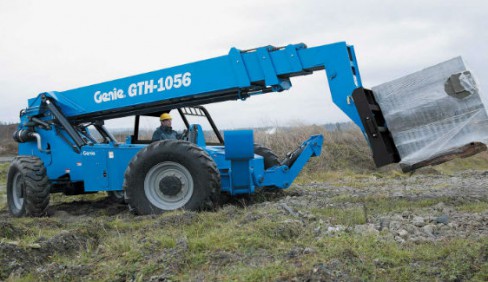

The Genie® GTH™-1056 telehandler offers excellent lift capacity and a maximum forward reach 42 ft (12.8 m) to move heavy loads over obstacles. Powerful four-wheel drive and turbocharged diesel engine to handle even the toughest worksite conditions.
•Compact outside turning radius and excellent ground clearance
•Pow... + Read More
Features
Measurements
• 10,000 lb (4,536 kg) maximum
lift capacity
• 56 ft 10 in (17.32 m) maximum lift height
• 42 ft (12.80 m) maximum reach
Productivity
• Full time 4WD
• 4WS
• Operator selectable front, crab,
coordinated steering modes
• Frame leveling 10° side to side
• 4-speed forward and reverse
powershift transmission
• Power assisted steering
• Inboard wet disc service brakes
• Wet disc spring applied parking brake
• 14 x 24 in 12-ply air-filled rough
terrain tires
• Front axle differential lock
• Rear axle stabilization system
• Twin axle mounted stabilizers
• High efficiency/variable displacement
hydraulic pump
• ROPS/FOPS canopy
• Single, multi-function, proportional joystick
• Machine level indicator
• Full gauge cluster with engine diagnostics
• 48 in carriage and pallet forks
• Boom angle indicator
• Retractable 3 in (7.6 cm) seatbelt
• Left front and rear tire fenders
• Reverse motion alarm
• Adjustable suspension seat
• Auxiliary hydraulic circuit (15 GPM)
• Genie manual Quick-Attach™ system
• Fenders (set of 4)
• Lift Shackle at boom tip
Productivity
• Fully enclosed cab (includes full glass,
defroster, wiper, washer, right-side sliding
window, split door)
• Fully enclosed cab air conditioning
• Front and top glass
• Right-side screen
• Dual joystick controls
• Flashing beacon
• Work lights (High output LED cab, boom
and rear)
• Road lights (High output LED 2 front
mounted, 1 backup, 2 rear stop/turn/tail)
• Fire extinguisher
• Rear proximity alarm
Engine Options
• Deutz TCD 3.6 L Tier 4i 121 HP (90.23 kW)*
• Perkins 1204E Tier 4i 124 HP (92.47 kW)
• Perkins 1104E Tier 3 124 HP (92.47 kW)**
• Engine block heater
Tire Options
• 14 x 24 in 12-ply foam-filled rough
terrain tires
• 14x24 Solid Rubber Tires
Attachment Options
• Carriages - Quick-Attach™
- 60 in (1.52 m) rotating carriage
(10° from center left and right)
- 48 in (1.22 m) rotating carriage (10°
from center left and right)
- 72 in (1.83 m) swing carriage (45°
from center left and right)
- 60 in (1.52 m) wide fork carriage
- 72 in (1.83 m) wide fork carriage
• Forks
- 60 in (1.52 m) pallet forks (set of two)
2.25 x 4 x 60 in (.06 x .10 x 1.52 m)
- 72 in (1.83 m) pallet forks (set of two)
2.25 x 4 x 72 in (.06 x .10 x 1.83 m)
Specifications
| Max Lift Capacity | 10,000 lb | 4,536 kg |
| Max Lift Height | 56 ft 10 in | 17.32 m |
| Max Forward Reach | 42 ft | 12.80 m |
| Capacity at Max Height | 4,000 lb | 1,814 kg |
| Capacity at Max Reach | 3,000 lbs | 1,361 kg |
