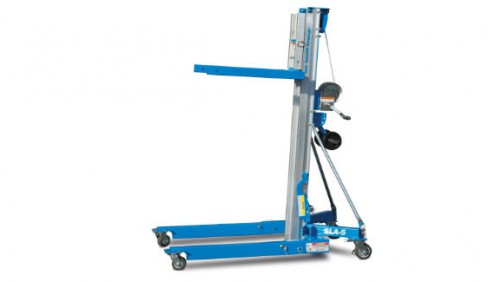

Genie SLA™-5

Features
Measurements
SLA™-5
• 6 ft 7 in (2.0 m) maximum lifting height
• Up to 1,000 lbs (454 kg) load capacity
Productivity
• Heavy-duty design
• Patented telescoping mast system
• Captive stabilizer set (standard on
SLA-20, -25)
• Rolls easily through single door in
upright position
• Quick set up requires no tools
• Interchangeable load handling attachments
• Maneuverable 4 in (10 cm) front casters
and 5 in (13 cm) rear casters, with 4-way
swivel locks and side brakes
• Compact design, legs fold up for
easy storage
• Easy to load and unload on or off a vehicle
for transport
• Hold-down bar secures mast assembly
during transport
• Winch locks load in place
Power
• One speed manual winch
Productivity & Fork Options
• Adjustable forks
• Fork extensions
• Flat forks (SLA-5,-10, -15 only)
• Boom
• Pipe cradle (available aftermarket only)
• Load platform
• Captive stabilizer set (option on
SLA-5, -10, -15)
• Mast brake
Power Options
• Two-speed manual winch
Base Options
• Straddle base (SLA-5, -10, -15 only)
• Stabilizer set (standard on SLA-20, -25,
not available on straddle base)
Caster & Brake Options
• Rear transport wheel assembly
Specifications
Max Lifting Height | 6 ft 7 in |
Capacity | 1,000 lb |
Stowed Height | 6 ft 6.5 in |
Machine Weight | 215 lb |
