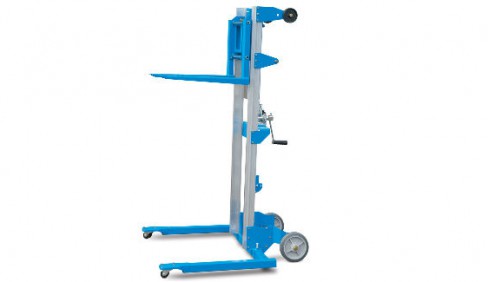

Genie GL™-4

Double tap to zoom



Features

Measurements

GL™-4

•   5 ft 11 in (1.80 m) maximum lifting height
•   Up to 500 lbs (227 kg) load capacity

Productivity

•   Portable and compact design
•   Rolls easily through a single door
•   Durable standard steel forks
•   8 in (20 cm) non-marking rear wheels and
2 in (5 cm) dual wheel front swivel casters
(standard and straddle base only)
•   5 in (12 cm) rear swivel casters with side
brakes and 4 in (10 cm) fixed front wheels
(counterweight base only)
•   Loads easily into a pickup truck
for transporting
•   Hold-down mechanism secures carriage
during transport

Power

•   Standard winch
•   Reversible winch handle for easy storage

Productivity & Fork Options

•  Boom
•   Load platform
•   Aluminum ladder (standard and straddle
base only)*
•   Foot-release brake (standard and straddle
base only)

Power

•   Heavy duty winch

Base Options

•   Standard base (GL-4, -8 only)
•   Straddle base (all units)
•   Counterweight base (GL-4, -8, -10 only)

Wheel/Caster Options

Straddle and standard base
•   10 in (25 cm) pneumatic rear wheels,
2.5 in (6.5 cm) front swivel casters
Straddle base
•   4 point caster option A: 4 in (10 cm)
rear swivel casters, 2 in (5 cm) front
swivel casters
•   4 point caster option B: 5 in (12 cm)
rear swivel casters, 2.5 in (6.5 cm) front swiverl casters

Specifications

Max Lifting Height 5 ft 11 in
Capacity 500 lb
Stowed Height 5 ft 7.5 in
Machine Weight 126 lb
