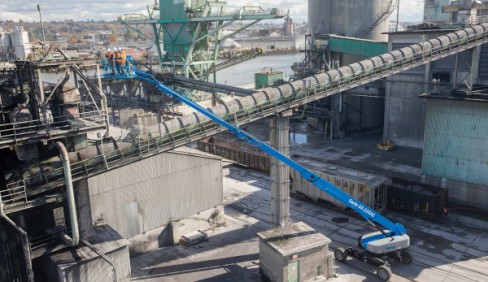

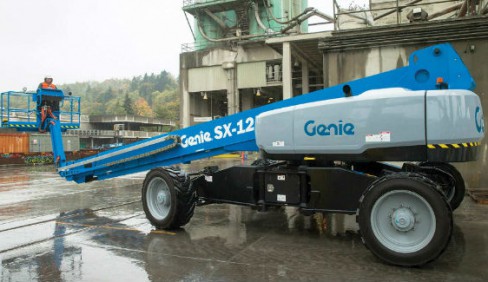

Browse EquipmentGenie SX-125 XC™
Features
- Smooth range of motion envelope — no more saw tooth
- Mini Genie XChassis™ design for compact transportation and work in confined areas
- Load sense technology for accurate load weighing and zero-load field calibration
- Extended reach out and down capability with 8 ft 1 in (2.69 m) of reach below grade
Specifications
| Models | SX-125 XC |
| Measurements | US |
| Working height max.(1) | 131 ft |
| Platform height max. | 125 ft |
| Horizontal reach max. | 80 ft |
| Below ground reach | 8 ft 10 in |
| Platform length (8 ft/6 ft) | 3 ft/2 ft 6 in |
| Platform width (8 ft/6 ft) | 8 ft/6 ft |
| Height - stowed (tires) | 10ft |
| Length - stowed (tires) | 46 ft 9 in |
| Length - storage/transport (jib tucked under) | 40 ft |
| Width (axles retracted) | 8 ft 2 in |
| Width (axles extended) | 12 ft 11 in |
| Wheelbase | 13 ft 6 in |
| Ground clearance - center (tires) | 15 in |
| Height under counterweight | 4 ft |
| Productivity | |
| Lift capacity max. - unrestricted | 660 lb |
| Lift capacity max. - restricted | 1,000 lb |
| Number of Platform Occupants (restricted/unrestricted) | 3/2 |
| Platform rotation | 160° |
| Jib length | 5 ft |
| Vertical jib rotation (up/down) | 135° |
| Turntable rotation | 360° |
| Turntable tailswing (axles retracted) | 1 ft 10 in |
| Turntable tailswing (axles extended) | 3 ft 4 in |
| Drive speed - stowed (tires) | 3.0 mph |
| Drive speed - raised (tires) | 0.38 mph |
| Gradeability - stowed(2) | 0.4 |
| Tilt sensor activation (front to back/side to side) | 4.5° / 3° |
| Turning radius - inside/outside (axle retracted) | 26 ft 4 in/32 ft 8 in |
| Turning radius - inside/outside (axle extended) | 9 ft 6 in/20 ft 3 in |
| Tires | 445D50/710 |
| Power | |
| Power | Diesel |
| Hydraulic tank capacity | 55 gal |
| Fuel tank capacity | 40 gal |
| Weight(3) and Floor Loading(4) | |
| Weight (tires) | 45,636 lb |
| Tire contact pressure | 102 psi |
| Occupied floor pressure, axles retracted/ extended (tires) | 324 psf/ 205 psf |
| Sound and Vibration Levels | |
| Sound Pressure level (ground workstation) | 91 dBA |
| Sound Pressure level (platform workstation) | 75 dBA |
| Vibrations | < 2.5 m/s2 |
