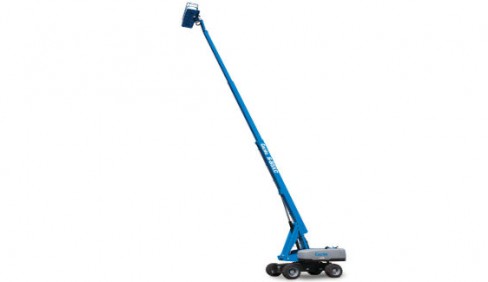

Browse EquipmentGenie S-80 XC and S-85 XC
Features
- Maximum capacity with a robust jib design to handle increased loads
- Load sense technology for accurate load weighing and zero-load field calibration
- Chassis tilt sensor technology maximizes access to hard-to-reach work areas
- Onboard diagnostics maximizes serviceability
- Option to add the new Genie Lift Power™ generator system
Specifications
| Models | S-80 XC | S-85 XC |
| Measurements | US | US |
| Working height max.(1) | 86 ft | 91 ft |
| Platform height max. | 80 ft | 85 ft |
| Horizontal reach max. | 68 ft 6 in | 74 ft 6 in |
| Below ground reach | 5 ft 6 in | 8 ft 8 in |
| A Platform length (8 ft/6 ft) | 3 ft/2 ft 6 in | 3 ft/2 ft 6 in |
| B Platform width (8 ft/6 ft) | 8 ft/6 ft | 8 ft/6 ft |
| C Height - stowed (tires) | 9 ft 2 in | 9 ft 2 in |
| D Length - stowed (tires) | 37 ft 7 in | 40 ft 7 in |
| Length - storage/transport (jib tucked under) | - | 33 ft 8 in |
| E Width (tires) | 8 ft 2 in | 8 ft 2 in |
| F Wheelbase | 9 ft 4 in | 9 ft 4 in |
| G Ground clearance - center (tires) | 15.8 in | 15.8 in |
| H Height under counterweight | 3 ft 9 in | 3 ft 9 in |
| Productivity | ||
| Lift capacity max. - unrestricted | 660 lb | 660 lb |
| Lift capacity max. - restricted | 1,000 lb | 1,000 lb |
| Number of Platform Occupants (restricted/unrestricted) | 3/2 | 3/2 |
| Platform rotation | 160° | 160° |
| Jib length | — | 5 ft |
| Vertical jib rotation (up/down) | — | 133° |
| Turntable rotation | 360° | 360° |
| Turntable tailswing | 5 ft 3 in | 5 ft 3 in |
| Drive speed - stowed (tires) | 3.0 mph | 3.0 mph |
| Drive speed - raised (tires) | 0.5 mph | 0.5 mph |
| Gradeability - stowed(2) | 0.45 | 0.45 |
| Tilt sensor activation (front to back/side to side) | 7° / 5° | 7° / 5° |
| Turning radius - inside/outside (tires) | 12 ft/21 ft 6 in | 12 ft/21 ft 6 in |
| Tires | 18-625 | 18-625 |
| Power | ||
| Power | Diesel | Diesel |
| Hydraulic tank capacity | 40 gal | 40 gal |
| Fuel tank capacity | 35 gal | 35 gal |
| Weight(3) and Floor Loading(4) | ||
| Weight (tires) | 37,000 lb | 39,500 lb |
| Tire contact pressure | 130 psi | 130 psi |
| Occupied floor pressure (tires) | 370 psf | 395 psf |
| Sound and Vibration Levels | ||
| Sound Pressure level (ground workstation) | 85 dBA | 85 dBA |
| Sound Pressure level (platform workstation) | 78 dBA | 78 dBA |
| Vibrations | < 2.5 m/s2 | < 2.5 m/s2 |
