Measurements

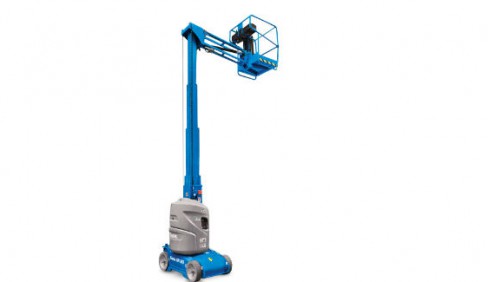

GR-26J
• 31 ft 10 in (9.90 m) working height
• 8 ft 3 in (2.51 m) horizontal reach
• 21 ft 10.5 in up-and-over reach
• Up to 500 lbs (227 kg) lift capacity
• 4 ft 10 in (1.45 m) jib boom with 140°
working range

Productivity

• Standard steel platform 2 ft 11 in x
2 ft 5.5 in (0.90 m x 0.75 m) with
sliding midrail
• Hydraulic turntable rotation
• Fully proportional lift and drive system
• Drivable at full height
• Low 6 in (15 cm) platform entry height
• Maintenance free rigid steel hydraulic mast
• 44.8 in (1.14 m) compact width
• Low unit height of 6 ft 6 in (1.99 m)
• Low machine weight of 6,250 lbs (2,835 kg)
• Onboard diagnostic system
• AC power to platform
• Direct electric rear wheel drive with electric
parking brake
• Front wheel steering
• Brake release switch
• Reinforced ABS chassis covers
• Tie down attachments points
• Overhead crane attachment points
• Non-marking solid tires
• Drive enable system
• Horn
• Hour meter
• Tilt level sensor with audible alarm
• Platform overload sensing
• Manual platform lowering valve
• Emergency stop at both platform and
ground controls
• Motion alarm

Power

• Automatic 30 Amp 24 V battery
onboard charger
• 24 V DC (twelve 2V, 280 Ah
traction batteries)
• Battery charge indicator

Productivity

• Flashing beacon
