Measurements

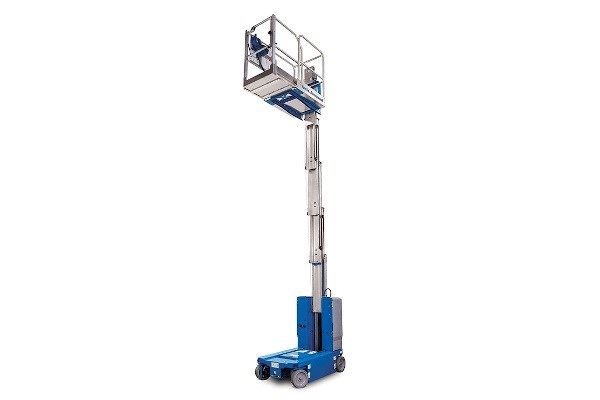

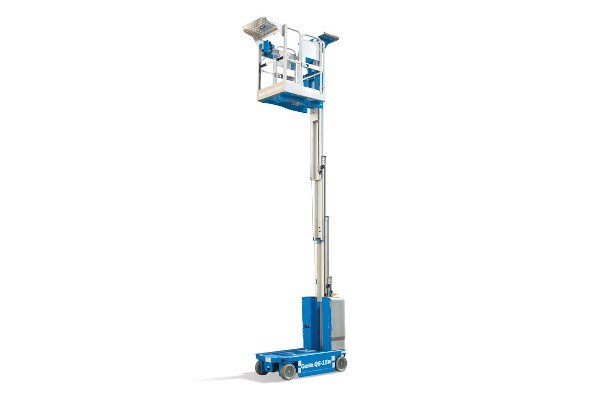

QS-12R & QS-12W
• 17 ft 4 in (5.45 m) working height
• 11 ft 4 in (3.45 m) platform height
• Up to 500 lbs (227 kg) lift capacity

Power

• Automatic 19 amp battery charger
• AGM maintenance-free batteries
• 6 ft (1.8 m) charger cord
• 24V (four 6V 200 Ah maintenance-free
batteries)

Productivity

• Stockpicker platform with dual side entry
gates and front folding tray
• Stockpicker rear parcel tray
(QS-12 & QS-15, ANSI only)
• Auxiliary platform lowering
• Patented rigid mast system
• Enclosed platform cables
• Compact base 29.5 x 53 in
(0.75 x 1.35 m) (QS-12 & QS-15 only)
• SmartLink™ control system
• Battery charge indicator
• On-board diagnostic system
• AC power to platform
• Descent and tilt alarm
• Zero inside turning radius
• Dual wheel brakes
• Hydraulic brake release

Productivity (continued)

• Pothole protection
• Hinged rear ABS covers for easy access
to all major electrical and hydraulic
components
• Tie down attachment points
• Overhead crane attachment point
• Large forklift pockets access
• Flashing beacons (Retail
configuration only)
• Obstruction sensing pad (Retail
configuration only)
• Non-marking solid tires
• Motion alarm

Productivity (Retail configuration only)

• Dual flashing beacons
• Obstruction sensing pad

Productivity

• Dual bike hooks
• Adjustable front tray
• EE Certification*
• Biodegradable hydraulic oil
• Drive cutout while charging
• 10 ft retractable charging cord
(not available with inverter)
