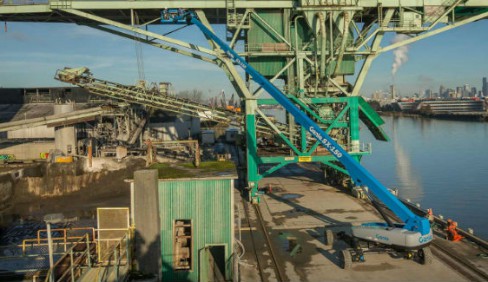

Genie SX™-150

Double tap to zoom



Features

Measurements

• 158 ft (48.33 m) working height
• 80 ft (24.4 m) horizontal reach
• 750 lb (340 kg) lift capacity

Productivity

• Xchassis extendable axles
• 10 ft (3.05 m) 60° rotating jib
• Self-leveling platform
• 160° hydraulic platform rotation
• Proportional joystick controls
• Hydraulic oil cooler
• Drive enable
• AC power in the platform
• Horn
• Hour meter
• Tilt alarm
• Descent alarm
• 360° continuous turntable rotation
• Positive traction 4WD
• Two speed wheel motors
• Four wheel high angle steer
• Four steering modes: front, rear, crab
and coordinated
• On board full diagnostics and engine
monitoring display
• Telematics ready connector
• Entry Toeboard
• Lift Guard™ Contact Alarm

Power

• 7.5 kW welder ready generator
- 208V/120V/60Hz (North America)
- 415V/240V/50Hz (Europe & Australia)
- 110V/55V/50Hz (UK)
• 12 V DC auxiliary power
• Auto engine fault protection
• Swing out engine tray

Platform Options

• Steel 8 ft (2.44 m) (standard)
• 8 ft (2.44 m) tri-entry

Drive/Steer

• 4WD (standard)
• 4WS (standard)

Engine Options

• 74 hp (55 kW) Deutz turbo diesel, T4f*
(standard)
• 74 hp (55 kW) Perkins turbo diesel, T4f*

Tires

• Rough terrain foam-filled (standard)

Specifications

Max Platform Height 152 ft | 48.33 m
Max Horizontal Reach 80 ft | 24.38 m
Below Ground Reach 2 ft | 0.61 m
Platform Capacity 750 lb | 340 kg
Machine Width and Length 12 ft 11 in / 46 ft 9 in | 3.94 m / 14.24 m



WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped), lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
