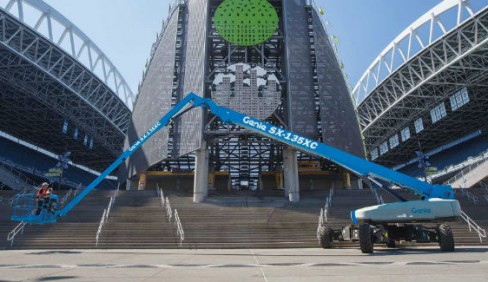

Genie SX-135 XC™

Double tap to zoom



Features

Measurements

• 141 ft (43.15 m) working height
• 90 ft (27.43 m) horizontal reach
• 660 lbs (300 kg) unrestricted and
1,000 lbs (454 kg) restricted lift capacity
Jib
• 18 to 30 ft (5.49 to 9.14 m) Jib-Extend™

Productivity

• Mini XChassis™ extendable axles
• Self-leveling platform
• 160° hydraulic platform rotation
• Proportional joystick controls
• Hydraulic oil cooler
• Drive enable
• AC power in the platform
• Horn
• Hour meter
• Tilt alarm
• Descent alarm
• 360° continuous turntable rotation
• Positive traction 4WD
• Two speed wheel motors
• Four wheel high angle steer
• Four steering modes: front, rear, crab
and coordinated
• On board full diagnostics and engine
monitoring display
• Telematics ready connector
• Platform Load sense system
• Entry Toeboard
• Lift Guard™ Contact Alarm

Power

• 12 V DC auxiliary power
• Auto engine fault protection
• Swing out engine tray

Platform Options

• Steel 6 ft (1.83 m) platform with side
swing gate
• 8 ft (2.44 m) tri-entry platform with side
swing gate (standard)

Drive/Steer

• 4WD (standard)
• 4WS (standard)

Engine Options

• 74 hp (55 kW) Deutz turbo diesel, T4f
• 74 hp (55 kW) Deutz turbo diesel, T4i*
• 74 hp (55 kW) Perkins turbo diesel, T4f
• 74 hp/83 hp (55 kW/62 kW) Perkins
turbo diesel, T3*

Tires

• Rough terrain foam-filled (standard)

Specifications

Platform Height 135 ft | 41.15 m
Max Horizontal Reach 90 ft | 27.43 m
Below Ground Reach 19 ft 8 in | 6.00 m
Platform Capacity 660 lb Unrestricted, 1000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted
Machine Width and Length 12 ft 11 in / 64 ft 10 in | 3.94 m / 19.76 m



WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped), lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
