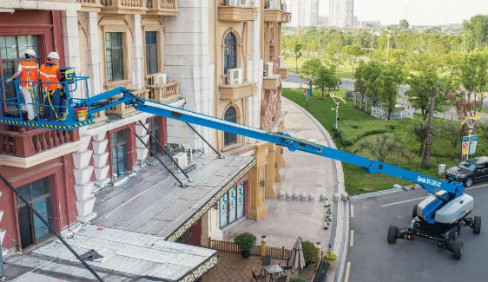

Genie SX™-105 XC™

Features
Measurements
SX-105 XC™
• 111 ft 2 in (34 m) working height
• 80 ft (24.38 m) horizontal reach
• 660 lbs (300 kg) unrestricted and
1,000 lbs (454 kg) restricted lift capacity
SX-125 XC™
• 131 ft 2 in (40.10 m) working height
• 80 ft (24.38 m) horizontal reach
• 660 lbs (300 kg) unrestricted and
1,000 lbs (454 kg) restricted lift capacity
Productivity
• Mini XChassis™ extendable axles
• 5 ft (1.52 m) jib boom
• Self-leveling platform
• 160° hydraulic platform rotation
• Proportional joystick controls
• Hydraulic oil cooler
• Drive enable
• AC power in the platform
• Horn
• Hour meter
• 360° continuous turntable rotation
• Positive traction 4WD
• Two speed wheel motors
• Four wheel high angle steer
• Four steering modes: front, rear, crab
and coordinated
• On board full diagnostics and engine
monitoring display
• Telematics ready connector
• Platform load sense system
• Entry toeboard
• Lift Guard™ Contact Alarm
• Light package
• Lockable platform control box cover
• Alarm package: flashing beacon,
descent, travel and tilt alarms
Power
• 12 V DC auxiliary power
• Auto engine fault protection
• Swing out engine tray
• Welder Ready 12 kW Generator
Platform Options
• Steel 6 ft (1.83 m) platform with side
swing gate
• 8 ft (2.44 m) tri-entry platform with side
swing gate (standard)
Drive/Steer
• 4WD (standard)
• 4WS (standard)
Engine Options
• 74 hp (55 kW) Deutz turbo diesel, T4f
• 74 hp (55 kW) Deutz turbo diesel, T4i*
• 74 hp (55 kW) Perkins turbo diesel, T4f
• 74 hp/83 hp (55 kW/62 kW) Perkins
turbo diesel, T3*
Tires
• Rough terrain foam-filled (standard)
Specifications
Max Platform Height | 105 ft | 32 m |
Max Horizontal Reach | 80 ft | 24.38 m |
Below Ground Reach | 8 ft 10 in | 2.69 m |
Platform Capacity | 660 lb Unrestricted, 1000 lb Restricted | 300 kg Unrestricted / 454 kg Restricted |
Machine Width and Length | 12 ft 11 in / 46 ft 9 in | 3.94 m / 14.24 m |
