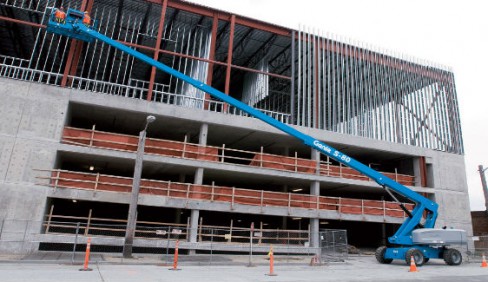

Genie S®-80X & S®-85

Double tap to zoom



Features

Measurements

S-80 X*
• 86 ft (26.38 m) working height
• 71 ft 6 in (21.8 m) horizontal reach
• 500 lbs (227 kg) unrestricted and
1000 lbs (454 kg) restricted lift capacity


S-85
• 91 ft (27.91 m) working height
• 76 ft 6 in (23.3 m) horizontal reach
• 500 lbs (227 kg) lift capacity

Productivity

• Self-leveling platform
• 160° hydraulic platform rotation
• Proportional joystick controls
• Drive enable
• AC power cord to platform
• Horn
• Hour meter
• Tilt alarm
• Descent alarm
• 360° continuous turntable rotation
• Positive traction drive
• Two speed wheel motors
• Telematics ready connector
• Entry Toeboard
• Lift Guard™ Contact Alarm

Power

• 12V DC auxiliary power
• Anti-restart engine protection
• Auto engine fault shutdown

Platform Options

• Steel 8 ft (2.44 m) tri entry with side
swing gate (standard)
• Steel 6 ft (1.83 m) dual entry with side
swing gate

Jib Options

• Non-jib (S-80 only)
• 5 ft (1.52 m) jib boom (S-85 only)

Engine Options

• 74 hp (55.18 kW) Deutz turbo diesel
T4f** (standard)
• 58 hp (43.25 kW) Perkins turbo
diesel T4i
• 70 hp (52.2 kW) GM gas/LPG

Drive Options

• 2WD
• 4WD (standard)

Axle

• Active oscillation

Tire Options

• Rough terrain foam-filled (standard)
• Rough terrain non-marking foam-filled
• Rough terrain solid rubber high floatation
air-filled (Increases width by 4 in)

Specifications

Max Platform Height S-80: 80 ft / S-85: 85 ft | S-80: 24.38 m / S-85: 25.91 m
Max Horizontal Reach S-80: 71 ft 6 in / S-85: 76 ft 6 in | S-80: 21.79 m / S-85: 23.32 m
Below Ground Reach S-80: 6 ft 1 in / S-85: 9 ft 6 in | S-80: 1.85 m / S-85: 2.9 m
Platform Capacity S-80: 500 lbs/1,000 lbs | S-85: 500 lbs | S-80: 227 kg/ 454 kg | S-85: 227 kg
Machine Width and Length S-80: 8 ft 2 in / 36 ft 10 in | S- 85: 8 ft 2 in / 40 ft 4 in | S-80: 2.49 m / 11.23 m | S-85: 2.49 m / 12.29 m
