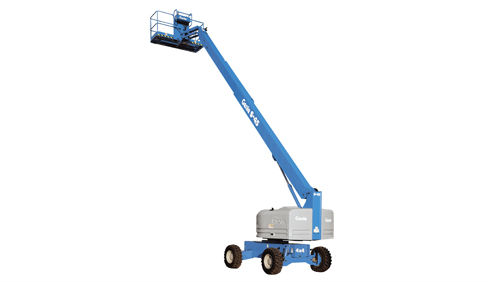

Genie S®-40 & S®-45

Double tap to zoom



Features

Measurements

S-40
• 46 ft (14.19 m) working height
• 31 ft 8 in (9.65 m) horizontal reach
• 500 lbs (227 kg) lift capacity
S-45
• 51 ft (15.72 m) working height
• 36 ft 8 in (11.18 m) horizontal reach
• 500 lbs (227 kg) lift capacity

Productivity

• Self-leveling platform
• 160° hydraulic platform rotation
• Proportional joystick controls
• Fuel select switch on platform
and ground control panels
(Gas/LPG models)*
• Drive enable
• AC power cord to platform
• Horn
• Hour meter
• Tilt alarm
• Descent alarm
• 360° continuous turntable rotation
• Locking turntable covers
• Positive traction drive
• Two speed wheel motors
• Telematics ready connector
• Entry Toeboard
• Lift Guard™ Contact Alarm

Power

• 12 V DC auxiliary power
• Anti-restart engine protection
• Auto engine fault shutdown
• Intake air heater (Deutz engine

Platform Options

• Steel 8 ft (2.44 m) tri entry with side
swing gate (standard)
• Steel 6 ft (1.83 m) dual entry with side
swing gate

Jib Options

• Non-jib (S-40 only)
• 5 ft (1.52 m) jib boom (S-45 only)

Engine Options

• 49 hp (36.54 kW) Deutz diesel T4f**
(standard)
• 49 hp (36.54 kW) Perkins diesel T4f**
• 60hp (44.74kW) Ford Gas/LPG

Drive Options

• 2WD
• 4WD (standard)

Axle Options

• Active oscillation (4WD)
• Non-oscillating (2WD)

Tire Options

• Rough terrain air-filled (standard)
• Rough terrain foam-filled
• Rough terrain non-marking
(air or foam-filled)
• High flotation air-filled
• Sealant treated air-filled
• Trax (track system)

Specifications

Max Platform Height S-40: 40 ft/ S-45: 45 ft | S-40: 12.2 m/ S-45: 13.7 m
Max Horizontal Reach S-40: 31 ft 8 in/ S-45: 36 ft 8 in | S-40: 9.65 m/ S-45: 11.18 m
Below Ground Reach S-4: 3 ft 2 in/ S-45: 4 ft 11 in | S-40: 0.97 m/ S-45: 1.50 m
Platform Capacity 500 lb | 227 kg
Machine Width and Length S-40: 7 ft 6 in, 24 ft 3 in / S-45: 7 ft 6 in , 27 ft 10 in | S-40: 2.30 m, 7.39 m / S-45: 2.30 m, 8.48 m
