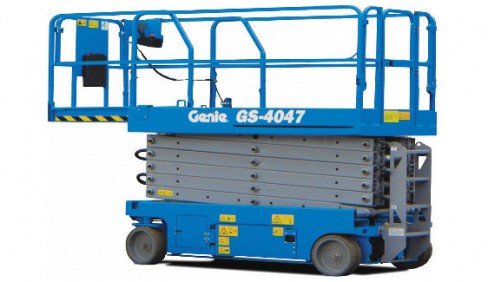

Genie GS™-4047

Features
Measurements
GS-4047
• 45 ft (13.89 m) working height
• Up to 550 lbs (249 kg) lift capacity
Productivity
• Drive at full height
• Folding rails with full height
swing gate
• Smart Link™ - proportional lift and drive
• Platform control with battery
charge indicator
• AC power to platform
• Lanyard attachment points
• Manual platform lowering valve
• Emergency stop at both platform and
ground controls
• Rear wheel multiple disc brakes
• Front wheel hydraulic dynamic braking
• Manual hydraulic brake release
• Swing-out component trays
• Pothole guards
• Tilt level sensor with audible alarm
• Descent alarm
• Electronic horn
• Hour meter
• Motion alarm
Power
• 24 V DC, 300 Ah (four 12 V 150 Ah
batteries in parallel series)
• Universal 20 amp smart charger
Platform
• 7 ft 5 in x 3 ft 9.3 in (2.26 x 1.15 m) steel
platform
• 3 ft 9.3 in (0.91 m) extension deck
Drive
• Dual front wheel hydraulic drive
Tires
• Solid non-marking
Productivity Options
• Air line to platform
• Dual flashing LED beacons
• Automotive-style horn
Specifications
Max Platform Height | 39 ft | 11.89 m |
Capacity | 550 lb | 249 kg |
Machine Width | 3 ft 11 in | 1.19 m |
Machine Length | 8 ft 2 in | 2.48 m |
Weight | 7,185 lb | 3,260 kg |
