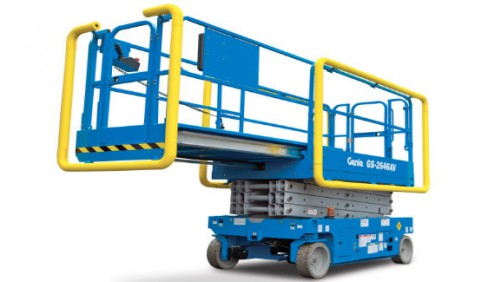

Genie GS™-2646 AV

Double tap to zoom



Features

Measurements

GS-2646 AV
• 32 ft 6 in (9.92 m) working height
• Up to 900 lbs (408 kg) lift capacity

Productivity

• 92 x 45.3 in (2.30 x 1.15 m)
steel platform
• 60 in (1.52 m) powered extension deck
• Drive at full height
• AC power to platform
• Full height swing gate
• Dual front wheel drive
• Front gate
• Gate and extension deck limit switches
• Universal 20 amp smart charger
• Rear recessed charger receptacle
• Padded aircraft protection rail (PAR)
• SmartLink™ - proportional lift and drive
• Platform control with battery charge
indicator and diagnostic display
• Tread-grip deck
• On-board diagnostic system
• 28 mph (45 km/h) wind rating
• Lanyard attachment points
• Manual platform lowering valve
• Emergency stop at both platform
and ground controls
• Rear wheel multiple disc brakes
• Front wheel hydraulic dynamic braking
• Manual hydraulic brake release
• Swing-out component trays
• Solid non-marking tires
• Pothole guards
• Tilt level sensor with audible alarm
• Descent alarm
• Electronic horn
• Motion alarm

Power

• 24 V DC (four 6 V 225 Ah batteries)

Productivity Options

• Air line to platform
• Dual flashing LED beacons
• Keyless switch
• Remote charging (no on-board charger)
• 35 mph (56 km/h) wind rating

Power Options

• EE rating
• Power inverter (120 V / 60 Hz)*
• AGM maintenance-free batteries

Specifications

Max Platform Height 26 ft | 7.92 m
Capacity 900 lb | 408 kg
Machine Width with protective padding 4 ft 8 in | with protective padding 1.42 m
Machine Length 8 ft 9 in | 2.67 m
Weight 5,225 lb | 2,370 kg
