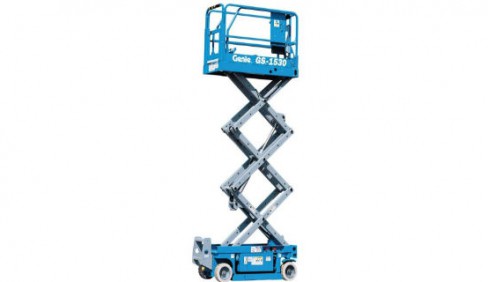

Genie GS™-1530

Features
Measurements
GS-1530
• 21 ft (6.57 m) working height
• Up to 600 lbs (272 kg) lift capacity
Productivity
• 64 x 29 in (1.63 x .74 m) steel platform
• Fixed rail with chain entry gate
• 36 in (.91 m) extension deck
• Drive at full height
• Dual front wheel drive
• SmartLink™ - proportional lift and drive
• Universal 20 amp smart charger
• Rear recessed charger receptacle
• Up to 30% gradeability
• Platform control with battery charge
indicator and diagnostic display
• On-board diagnostic system
• AC power to platform
• Lanyard attachment points
• Manual platform lowering valve
• Emergency stop at both platform
and ground controls
• Rear wheel multiple disc brakes
• Front wheel hydraulic dynamic braking
• Manual hydraulic brake release
• Swing-out component trays
• Solid non-marking tires
• Pothole guards
• Tilt level sensor with audible alarm
• Descent alarm
• Electronic horn
• Hour meter
• Motion alarm
Power
• 24 V DC (four 6 V 225 Ah batteries)
Productivity Options
• Folding rails with half-height swing gate
• Platform swing gate, half-height
• Air line to platform
• Dual flashing LED beacons
• Automotive horn*
• Biodegradable hydraulic fluid
Power Options
• Power inverter (120 V/60 Hz)*
• EE rating
• AGM maintenance-free batteries
Specifications
Max Platform Height | 15 ft | 4.57 m |
Capacity | 600 lb | 272 kg |
Machine Width | 2 ft 6 in | 0.76 m |
Machine Length | 6 ft | 1.83 m |
Weight | 2,575 lb | 1,168 kg |
