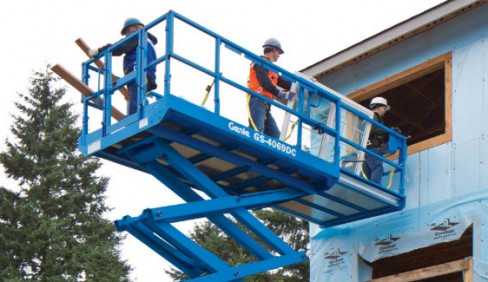

Genie GS™-4069 DC

Double tap to zoom



Features

Measurements

GS-4069 DC
• 46 ft 3 in (14.3 m) working height
• Up to 800 lbs (363 kg) lift capacity

Productivity

• Drive at full height
• Rough terrain capable
• AC sealed drive motors
• 48V DC (eight 6V batteries)
• 110 x 63 in (2.79 x 1.6m) steel
frame platform with replaceable aluminum
diamond plate deck
• 60 in (1.52 m) extension deck (ANSI)
• Folding rails
• SmartLink™ - proportional lift and drive
• Platform control with battery charge
indicator and diagnostic display
• On-board diagnostic system
• AC power to platform
• Full height swing gate
• 2WD
• Front oscillating axle
• Positive traction control
• Regenerative braking
• Non-marking rough terrain tires 12 x 26 in
(30 x 66 cm)
• Tilt level sensor with audible alarm
• Descent alarm
• Horn
• Motion alarm

Productivity

• Automatic leveling hydraulic outriggers
• Air line to platform
• 315 Ah batteries (standard on
GS-4069DC)
• Power inverter (120 V / 60 Hz)
• Dual flashing LED beacons
• High float foam filled non-marking tires

Specifications

Max Platform Height 40 ft 3 in | 12.3 m
Capacity 800 lb | 363 kg
Machine Width 5 ft 9 in | 1.75 m
Machine Length 10 ft 3 in | 3.12 m
Weight 10,856 lb | 4,924 kg
