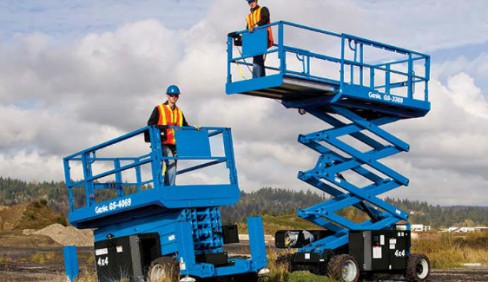

Genie GS™-3369 RT

Double tap to zoom



Features

Measurements

GS-3369 RT
• 39 ft (11.96 m) working height
• Up to 1,000 lbs (454 kg) lift capacity

Productivity

• Drive at full height
• 110 x 63 in (2.79 x 1.6m) steel
frame platform with replaceable
aluminum diamond plate deck
• 60 in (1.52 m) extension deck
• Folding rails
• Proportional lift and drive
• AC power to platform
• Full height swing gate
• 4WD
• Front oscillating axle
• Positive traction control
• Four-wheel braking
• Swing-out engine tray
• Foam-filled rough terrain tires
• Tilt level sensor with audible alarm
• Descent alarm
• Horn
• Hour meter
• Motion alarm

Power

• 24.8 hp Kubota Tier 4f D1105 diesel

Productivity

• Automatic leveling hydraulic outriggers
• Air line to platform
• Foam filled non-marking rough terrain tires
12 x 26 in (30 x 66 cm)
• Dual flashing LED beacons
• Biodegradable hydraulic oil
• High float foam filled tires (GS-2669,
GS-3369 ANSI only)

Power Options

• AC, 3000 Watt generator (110 V/60 Hz)
or (240 V/50 Hz), (includes hydraulic
oil cooler)
• Cold weather package
• PSI (GM) .998L dual fuel with LPG tank

Specifications

Max Platform Height 32 ft 8 in | 9.96 m
Capacity 1,000 lb | 454 kg
Machine Width 5 ft 9 in | 1.75 m
Machine Length 10 ft 3 in | 3.12 m
Weight 7,895 lb | 3,490 kg
