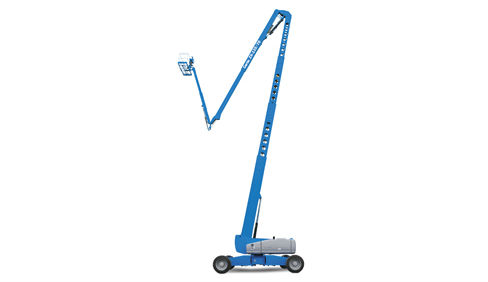

Genie ZX®-135/70

Double tap to zoom



Features

Measurements

• 141 ft (43.15 m) working height
• 69 ft 9 in (21.26 m) horizontal reach
• 75 ft 6 in (23.01 m) up and over clearance
• Up to 600 lbs (272 kg) lift capacity

Productivity

• Mini XChassis™ extendable axles
• 12 to 20 ft (3.66 to 6.1 m) Jib-Extend™
• 160° Hydraulic platform rotation
• Proportional joystick controls
• Hydraulic oil cooler
• Drive enable
• AC power cord to the platform
• Horn
• Hour meter
• Tilt alarm
• Descent alarm
• 360° continuous turntable rotation
• Positive traction 4WD
• Two speed wheel motors
• Four wheel high angle steer
• Four steering modes: front, rear, crab
and coordinated
• Four wheel brakes
• On board full diagnostics and engine
monitoring display
• Telematics ready connector
• Platform Load sense system
• Entry Toeboard
• Lift Guard™ Contact Alarm

Power

• 12 V DC auxiliary power
• Auto engine fault protection
• Swing out engine tray

Platform Options

• Steel 6 ft (1.83 m) platform with side
swing gate
• 8 ft (2.44 m) tri-entry platform with side
swing gate (standard)

Engine Options

• 74 hp (55 kW) Deutz turbo diesel, T4f
• 74 hp (55 kW) Deutz turbo diesel, T4i*
• 74 hp (55 kW) Perkins turbo diesel, T4f
• 74 hp/83 hp (55 kW/62 kW) Perkins
turbo diesel, T3*

Drive/Steer

• 4WD (standard)
• 4WS (standard)

Tire

• Rough terrain foam-filled (standard)

Specifications

Max Working Height 141 ft | 43.15 m
Max Horizontal Reach 69 ft 9 in | 21.26 m
Max Up and Over Clearance (riser extended) 75 ft 6 in | 23.01 m
Below Ground Reach 19 ft 3 in | 5.87 m
Platform Capacity 600 lb | 272 kg



WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped), lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
