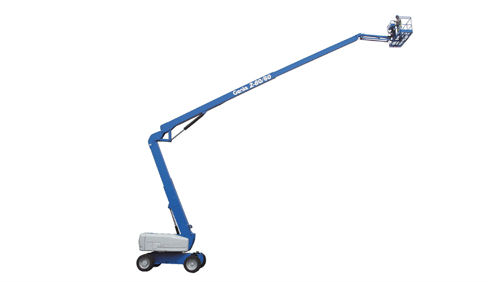

Genie Z®-80/60

Double tap to zoom



Features

Measurements

• 84 ft (25.77 m) working height
• 60 ft (18.29 m) horizontal reach
• 29 ft (8.83 m) up and over clearance
• Up to 500 lbs (227 kg) lift capacity

Productivity

• 6 ft (1.83 m) jib
• Self-leveling platform
• 160° hydraulic platform rotation
• Proportional joystick controls
• Hydraulic oil cooler
• Drive enable
• AC power cord to platform
• Horn
• Hour meter
• Tilt alarm
• Descent alarm
• 360° continuous turntable rotation
• Positive traction drive
• Two speed wheel motors
• Four steering modes: front, rear, crab and coordinated
• Telematics ready connector

Power

• 12 V DC auxiliary power
• Anti-restart engine protection
• Auto engine fault shutdown
• On board full diagnostic and engine monitoring display
• Dual battery

Platform Options

• Steel 8 ft (2.44 m) (standard)
• Steel 6 ft (1.83 m)
• Steel 8 ft (2.44 m) tri-entry

Jib

• 6 ft (1.83 m) jib boom

Engine Options

• 70 hp (52.2 kW) GM gas/LPG
• 74 hp (47 kW) Deutz turbo diesel, T4f*
• 58 hp (55 kW) Perkins turbo diesel, T4f*

Drive/Steer Options

• 4WD (standard)
• 2WS (standard)
• 4WS

Axle

• Active oscillation

Tire Options

• Rough terrain foam-filled (standard)
• Rough terrain non-marking foam-filled
• High flotation air-filled rough terrain

Specifications

Max Working Height 84 ft | 25.77 m
Max Horizontal Reach 60 ft | 18.29 m
Max Up and Over Clearance (riser extended) 29 ft | 8.83 m
Below Ground Reach 15 ft 10 in | 4.83 m
Platform Capacity 500 lb | 227 kg
