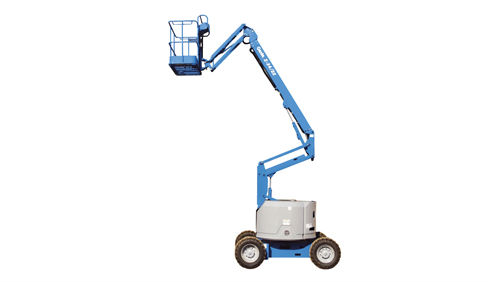

Genie Z®-34/22 IC

Double tap to zoom



Features

Measurements

Z-34/22 IC 2WD
• 40 ft 6 in (12.52 m) working height
• 22 ft 3 in (6.78 m) horizontal reach
• 14 ft 11 in (4.54 m) up and over clearance
• Up to 500 lbs (227 kg) lift capacity

Z-34/22 IC 4WD
• 40 ft 7 in (12.37 m) working height
• 22 ft 3 in (6.78 m) horizontal reach
• 15 ft (4.57 m) up and over clearance
• Up to 500 lbs (227 kg) lift capacity

Productivity

• 4 ft (1.22 m) jib with 139° working range
• Self-leveling platform
• Hydraulic platform rotation
• Proportional joystick controls
• Drive enable
• AC power cord to platform
• Horn
• Hour meter
• Tilt alarm
• Descent alarm
• Zero tailswing and front arm swing
• 355° non-continuous turntable rotation
• Locking turntable covers
• Two speed wheel motors
• Telematics ready connector

Power

• 12 V DC auxiliary power

Platform Options

• Steel 4 ft 8 in (1.42 m) (standard)
• Steel 3 ft 10 in (1.17 m)

Jib

• 4 ft (1.22 m) jib boom

Engine Options

• 40hp PSI (GM) .998L gas/LPG
• 26 hp (19.4 kW) Kubota, T4f diesel
• 24.6 (18.3kW) Perkins, T4f diesel

Drive Options

• 2WD
• 4WD

Tire Options

• Industrial air-filled*
• Rough terrain air-filled
• Industrial foam-filled*
• Industrial non-marking air or foam-filled*
• Rough terrain foam-filled
• Sealant treated air-filled

Specifications

Max Working Height 40 ft 6 in | 12.52 m
Max Horizontal Reach 22 ft 3 in | 6.78 m
Max Up and Over Clearance (riser extended) 15 ft | 4.57 m
Platform Capacity 500 lb | 227 kg
