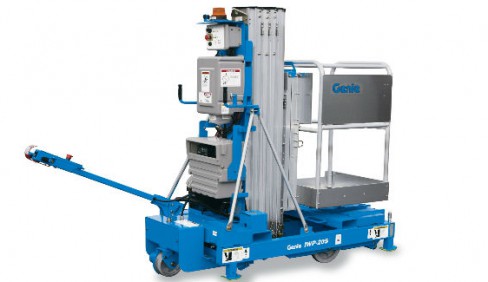

Genie IWP®-20S

Double tap to zoom



Features

Measurements

IWP-20S
• 26 ft 2 in (8.15 m) working height
• 20 ft 2 in (6.15 m) platform height
• 2 ft 8 in (0.81 m) standard base width
• Outreach option adds 2 ft 2 in (0.66 m)
of horizontal reach
• Up to 350 lbs (159 kg) lift capacity

Productivity

• Standard base (IWP™-20S and 25S only)
• Sliding mid-rail standard platform
• Auxiliary platform lowering
• Most rigid mast in the industry
• Standard base rolls through standard
doorways
• Wide base rolls through double doorways
• AC power to platform
• Dual activated up/down switch
• Ground fault interrupter lower receptacle
• Tie down attachment points
• Overhead crane attachment point
• Wide forklift pockets
• Built-in level sensing with interlocks

Power

• AC power 110V / 50-60 Hz
• AC power 220V / 50-60 Hz
• DC power with worldwide automatic
smart charging system (12V / 110V /
230V / 50-60 Hz)

Productivity

• Outreach option (IWP-20S only)
(not available for CSA)
• Operational warning light and
descent alarm package
• Tool tray
• Fluorescent tube caddy
• Platform locating laser light

Power

• Power wheel assist with dual
battery package*
• Dual battery package
• DC power 85V, 110V or 220V /
50-60 Hz

Platform

• Gated standard platform
• Gated narrow platform
• Standard fiberglass platform**

Base

• Wide base (IWP™-30 only)

Specifications

Working Height 20 ft 3 in8.17 m
Capacity 350 lb159 kg
Stowed Height 6 ft 4 in1.93 m
Machine Width 2 ft 8 in 81 cm
Weight 1,245 lb
