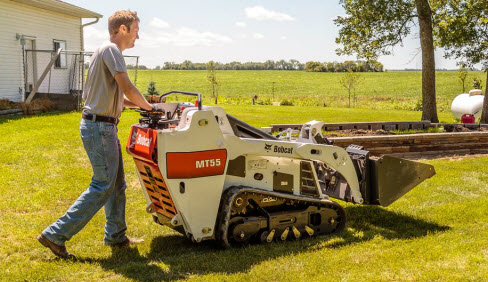

Bobcat MT55

Double tap to zoom



Features

Performance Features

Unmatched power to help you push through your toughest jobs.

Attachment Features

The industry leader in attachments and attachment-ready features.

Comfort Features

More standard comfort features make hard work easier.

Serviceability Features

Reduce your operating costs through preventative maintenance that gets completed quickly.

Specifications

Model Bobcat MT55
ENGINE
Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Displacement 55 in³
Number of Cylinders 3
Horsepower 24.8 hp
PERFORMANCE
Rated Operating Capacity (SAE) 550 lb
Tipping Load 1610 lb
Operating Weight 2610 lb
Ground Pressure (Rubber) 4.9 psi
Travel Speed 3.5 mph
Travel Speed - Reverse 1.4 mph
CAPACITIES
Fuel Tank 7 gal
HYDRAULIC SYSTEM
Pump Capacity 12 gal/min
System Relief @ Quick Couplers 2,900 psi
Auxiliary Std Flow n/a
DIMENSION
Length 93.1 in
Width 35.6 in
Height 49.1 in
Height to Bucket Hinge Pin 71.2 in
Length of track on ground 34 in
Reach @ Maximum Height 18.2 in
FEATURES
Lift-Arm Support Standard
Auxiliary Hydraulics Standard
Spark Arrestor Muffler Standard
Bob-Tach Attachment System Standard
Reverse Travel Stop Panel Standard
Wide Track Optional
Neutral Start Interlocks Standard
Lift Arm Lockout With Manual Bypass Standard
Tilt Lockout Standard
Built-In Tie Down & Crane/Lift Standard
Rid-on Platform Optional
