Performance Features

Unmatched power to help you push through your toughest jobs.

Uptime Protection Features

Intelligently designed components keep you on the job working.

Comfort Features

More standard comfort features make hard work easier.

Serviceability Features

Easy maintenance routines give you dependable performance and peace of mind.

Attachment Features

The industry leader in attachments and attachment-ready features.

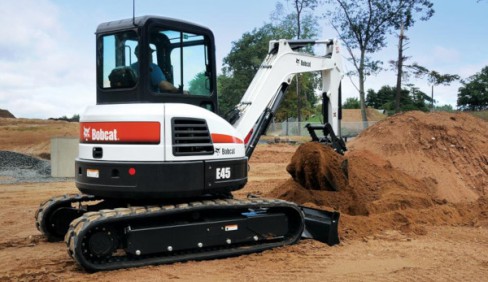

Model Bobcat E45 Standard Bobcat E45 Long Arm Bobcat E45 Extandable Arm
Emissions Tier (EPA) Tier 4 Tier 4 Tier 4
Engine Fuel Diesel Diesel Diesel
Maximum Governed RPM 2,200 rpm 2,200 rpm 2,200 rpm
Horsepower 42.7 hp 42.7 hp 42.7 hp
Turbocharged Engine Optional Optional Optional
Operating Weight 10,077 lb 10,553 lb 10,807 lb
Weight Class 4.6 t 4.8 t 4.9 t
Travel Speed - High 2.6 mph 2.6 mph 2.6 mph
Travel Speed - Low 1.5 mph 1.5 mph 1.5 mph
Arm Digging Force 5,332 lbf 4,690 lbf 5,332 lbf
Bucket Digging Force 7,650 lbf 7,650 lbf 7,650 lbf
Rated Lift Capacity 5131 lb 5082 lb 5255 lb
Lift Radius 118 in 118 in 118 in
Boom Swing - Left 75° 75° 75°
Boom Swing - Right 50° 50° 50°
Maximum Dig Depth 10.8 ft 11.8 ft 12.8 ft
Max Dump Height 11.9 ft 12.5 ft 13 ft
Maximum Reach at Ground Level 18.6 ft 19.6 ft 20.5 ft
Fuel Tank 21 gal 21 gal 21 gal
Auxiliary Std Flow 20 gal/min 20 gal/min 20 gal/min
Auxiliary Pressure 3,045 psi 3,045 psi 3,045 psi
Length 210.8 in 211.8 in 211 in
Overall Length in Travel Position 210.8 in 211.8 in 211 in
Width 77.2 in 77.2 in 77.2 in
Height 99.7 in 99.7 in 99.7 in
Height with Operator Cab 99.7 in 99.7 in 99.7 in
Air Conditioning Optional Optional Optional
Cab Enclosure Optional Optional Optional
Cab Heater Optional Optional Optional
Heater Air Conditioning Optional Optional Optional
Radio Optional Optional Optional
Tail Swing Type Zero Minimal Minimal
Engine Shutdown Standard Standard Standard
Auxiliary Hydraulics Standard Standard Standard
Secondary Auxiliary Hydraulics Optional Optional Optional
Quick Tach System Standard Standard Standard
Rubber Track Standard Standard Standard
Selectable Auxiliary Hydraulic Flow Standard Standard Standard
Angle Blade Optional Optional Optional
