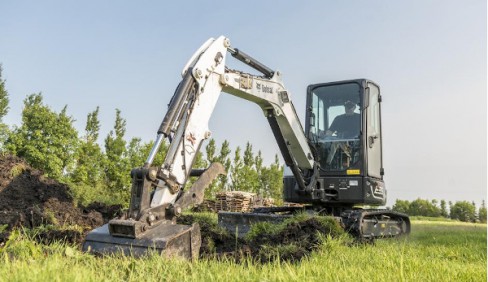

Bobcat E35 (33 hp)

Double tap to zoom



Features

Performance Features

Unmatched power to help you push through your toughest jobs.

Uptime Protection Features

Intelligently designed components keep you on the job working.

Comfort Features

More standard comfort features make hard work easier.

Serviceability Features

Easy maintenance routines give you dependable performance and peace of mind.

Attachment Features

The industry leader in attachments and attachment-ready features.

Specifications

Model: Bobcat E35 R2 33 HP E35 R2 - Series E35 R2-Series (LA) E35 R2-Series (EA)
ENGINE
Emissions Tier (EPA) Tier 4 Tier 4 Tier 4
Engine Fuel Diesel Diesel Diesel
Maximum Governed RPM 2,400 rpm 2,400 rpm 2,400 rpm
Horsepower 33 hp 33 hp 33 hp
Turbocharged Engine Optional Optional Optional
Optional Horsepower N/A N/A N/A
PERFORMANCE
Operating Weight 7893 lb 8596 lb 8824 lb
Weight Class 3.6 t 3.9 t 4 t
Travel Speed - High 2.9 mph 2.9 mph 2.9 mph
Travel Speed - Low 1.6 mph 1.6 mph 1.6 mph
Arm Digging Force 4690 lbf 4074 lbf 4592 lbf
Bucket Digging Force 7284 lbf 7284 lbf 7284 lbf
Rated Lift Capacity 3318 lb 3206 lb 3058 lb
Lift Radius 118 in 118 in 118 in
Boom Swing - Left 75° 75° 75°
Boom Swing - Right 55° 55° 55°
Maximum Dig Depth 10.1 ft 11.1 ft 12.8 ft
Max Dump Height 11.4 ft 11.9 ft 12.9 ft
Maximum Reach at Ground Level 17 ft 18 ft 19.6 ft
CAPACITIES
Fuel Tank 13.7 gal 13.7 gal 13.7 gal
HYDRAULIC SYSTEM
Auxiliary Std Flow 16.9 gal/min 16.9 gal/min 16.9 gal/min
Auxiliary Pressure 2,987 psi 2,987 psi 2,987 psi
DIMENSION
Length 190 in 190.1 in 190.4 in
Overall Length in Travel Position 190 in 190.1 in 190.4 in
Width 69.7 in 69.7 in 69.7 in
Height 96.2 in 96.2 in 96.2 in
Height with Operator Cab 96.2 in 96.2 in 96.2 in
