New Holland E57C
MORE POWER. MORE PRODUCTIVITY. MORE VALUE.

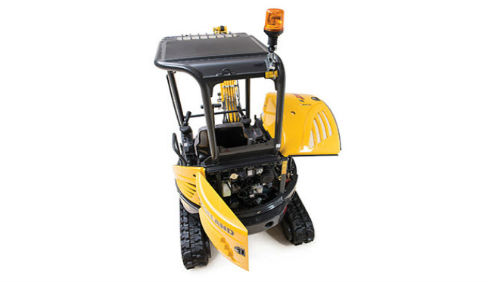

You can work next to buildings, foundations and roads with greater confidence in a C Series compact excavator. They combine power, performance and versatility to make the very most of every minute of your day.
Big power in restricted spaces
C Series excavators deliver big digging and grading performance with SAE bucket breakout forces up to 8,490 lbf and dig depth up to 12.5 feet. Their compact design and zero/short tail swing mean you can dig, fill and grade in the most confined, congested areas. You can offset the excavator boom left or right within the operating range to match the situation. The C Series also offers more ground clearance and excellent dozer blade lift height for maneuvering and working in tough conditions.
More selection, more power
With seven models from 1.7 to 6 tons, there’s nothing small about the performance of New Holland compact excavators. All models offer an increase in horsepower compared to previous models, powered by quiet, fuel-efficient Tier 4 Final engines up to 66.9 horsepower.
Ease and comfort equate with operator productivity, so the wide C Series cab is designed for spaciousness, all-around visibility, comfortable seating and smooth control. New Holland’s Auto Shift traveling system automatically downshifts when load increases to enhance travel torque on slopes and in difficult conditions, then shifts back up to secure a faster travel speed after the load decreases. The Auto Idle system activates when you are not using the operating levers to improve fuel efficiency.
|Operator Station||Enclosed Cab|
|Emissions Certification||Tier 4 Final|
|Displacement||203 in³ (3319 cc)|
|Fuel injection||Electronic common rail|
|Gross horsepower – SAE J1995||66.9 hp (49.9 kW) @2400 RPM|
|Travel speeds - 1st||1.4 mph (2.2 kph)|
|Travel speeds - 2nd||2.6 mph (4.2 kph)|
|Maximum traction force||11,680 lbf (52kN)|
|Ground pressure||CAB - 4.69 psi|
|Fuel tank||31.7 gal (120 L)|
|Hydraulic tank - Refill capacity||18.5 gal (70 L)|
|Hydraulic tank - Total system||31.7 gal (120 L)|
|Engine oil w/ filter change||3.1 gal (11.6 L)|
|Radiator||2.5 gal (9.5 L)|
|Arm (standard length)||5 ft. 3 in (1.6 m)|
|Overall height||8 ft. 4 in (2550 mm)|
|Overall transport length||19 ft. 4 in (5900 mm)|
|Track overall length||8 ft. 4 in (2530 mm)|
|Track overall width||6 ft. 2 in (1800 mm)|
|Track shoe width||15 in (380 mm)|
|Center to center – idler to sprocket||6 ft. 6 in (1990 mm)|
|Upper structure ground clearance||2 ft. 3 in (690 mm)|
|Minimum ground clearance||1 ft. 3 in (380 mm)|
|Tail swing radius||5 ft. 5 in (1650 mm)|
|Boom swing||80° left/50° right|
|Tail swing overhang||1 ft. 7 in (490 mm)|
|Operating weight||Cab: 12,050 lbs. (5465 kg)|
|Backfill blade height||1 ft. 2 in (350 mm)|
|Backfill blade width||6 ft. 2 in (1880 mm)|
|Backfill blade rise above ground||1 ft. 3 in (390 mm)|
|Backfill blade dig depth||1 ft. 11 in (590 mm)|
|Maximum dig radius||20 ft. 2 in (6150 mm)|
|Dig radius at groundline||19 ft. 9 in (6010 mm)|
|Maximum dig depth||12 ft. 6 in (3820 mm)|
|Vertical straight wall dig depth||10 ft. 6 in (3200 mm)|
