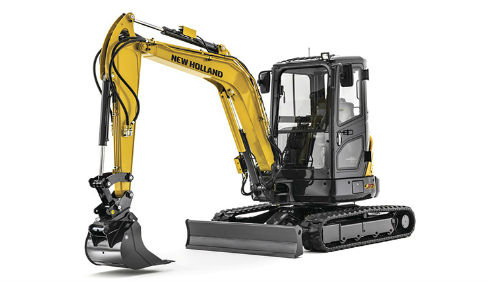

Browse EquipmentNew Holland E37C
Features
MORE POWER. MORE PRODUCTIVITY. MORE VALUE.
You can work next to buildings, foundations and roads with greater confidence in a C Series compact excavator. They combine power, performance and versatility to make the very most of every minute of your day.
Big power in restricted spaces
C Series excavators deliver big digging and grading performance with SAE bucket breakout forces up to 8,490 lbf and dig depth up to 12.5 feet. Their compact design and zero/short tail swing mean you can dig, fill and grade in the most confined, congested areas. You can offset the excavator boom left or right within the operating range to match the situation. The C Series also offers more ground clearance and excellent dozer blade lift height for maneuvering and working in tough conditions.
More selection, more power
With seven models from 1.7 to 6 tons, there’s nothing small about the performance of New Holland compact excavators. All models offer an increase in horsepower compared to previous models, powered by quiet, fuel-efficient Tier 4 Final engines up to 66.9 horsepower.
Comfortable operation
Ease and comfort equate with operator productivity, so the wide C Series cab is designed for spaciousness, all-around visibility, comfortable seating and smooth control. New Holland’s Auto Shift traveling system automatically downshifts when load increases to enhance travel torque on slopes and in difficult conditions, then shifts back up to secure a faster travel speed after the load decreases. The Auto Idle system activates when you are not using the operating levers to improve fuel efficiency.
Specifications
OPERATOR STATION
| Operator Station | ROPS with 4-post canopy or Enclosed Cab |
ENGINE
| Model | Yanmar 3TNV88F-ESHYB |
| Emissions Certification | Tier 4 Final |
| Fuel | Diesel |
| Cylinders | 3 |
| Displacement | 100.2 in³ (1642 cc) |
| Fuel injection | Mechanical with electronic governor |
| Gross horsepower – SAE J1995 | 24.4 hp (18.2 kW) @2200 RPM |
| Cooling | Water-cooled |
DRIVETRAIN
| Travel speeds - 1st | 1.6 mph (2.5 kph) |
| Travel speeds - 2nd | 2.6 mph (4.2 kph) |
| Maximum traction force | 6,835 lbf 30.4 kN) |
| Gradeability | 30° (58%) |
| Ground pressure | ROPS - N/A / CAB - 4.83 psi |
SERVICE CAPACITIES
| Fuel tank | 10.5 gal (40 L) |
| Hydraulic tank - Refill capacity | 9.8 gal (37 L) |
| Hydraulic tank - Total system | 15.9 gal (60 L) |
| Engine oil w/ filter change | 1.8 gal (6.7 L) |
| Radiator | 1.5 gal (5.5 L) |
DIMENSIONS
| Arm (standard length) | 4 ft. 3 in (1.3 m) |
| Overall height | 8 ft. 2 in (2500 mm) |
| Overall transport length | 15 ft. 9 in (4790 mm) |
| Track overall length | 7 ft. 0 in (2130 mm) |
| Track overall width | 5 ft. 9 in (1740 mm) |
| Track shoe width | 12 in (300 mm) |
| Center to center – idler to sprocket | 5 ft. 7 in (1700 mm) |
| Upper structure ground clearance | 1 ft. 9 in (540 mm) |
| Minimum ground clearance | 11 in (290 mm) |
| Tail swing radius | 2 ft. 10 in (870 mm) |
| Boom swing | 75° left/50° right |
| Tail swing overhang | 0 ft. 0 in (0 mm) |
| Operating weight | Canopy: 7,990 lbs. (3625 kg) / Cab: 8,300 lbs. (3765 kg) |
BLADE SPECS
| Backfill blade height | 1 ft. 3 in (370 mm) |
| Backfill blade width | 5 ft. 9 in (1740 mm) |
| Backfill blade rise above ground | 1 ft. 3 in (375 mm) |
| Backfill blade dig depth | 1 ft. 3 in (390 mm) |
PERFORMANCE SPECS
| Maximum dig radius | 17 ft. 5 in (5315 mm) |
| Dig radius at groundline | 17 ft. 1 in (5200 mm) |
| Maximum dig depth | 10 ft. 3 in (3135 mm) |
| Vertical straight wall dig depth | 7 ft. 2 in (2190 mm) |
