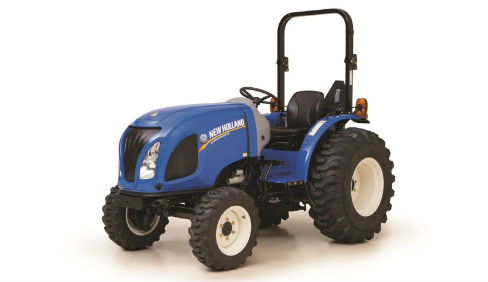

New Holland Workmaster™ 40
RUGGED DESIGN, FUEL-EFFICIENT POWER
WORKMASTER compacts feature the same rugged buckle-up driveline design found on New Holland ag tractors so you know they are built to last. They use powerful, yet fuel efficient, 3 cylinder diesel engines to help you tackle your toughest tasks.
EASY ON AN OFF
Roomy, no-clutter operating platform gives you and open path to the seat.
With its well placed, clearly marked and color coded controls you'll be operating a WORKMASTER™ compact tractor like a pro in no time.
BOOMER GUARD 6
You’ll have peace of mind knowing that New Holland’s Boomer Guard 6 limited warranty includes 2 years of bumper to bumper-to-bumper coverage, plus an extra 4 years of powertrain protection.
WIELD THE POWER THAT TAMES TOUGH JOBS
You can rely on your WORKMASTER tractor for years of dependable, trouble-free performance.
MADE TO LAST
Your WORKMASTER™ may be a small tractor, but it has a big-tractor backbone with heavy castings for the engine, transmission and rear axles. A cast-iron block, heavy-duty internal components and proven technology mean you can expect years of dependable, trouble-free performance.
Turbocharged, large-displacement three-cylinder engines deliver improved power and torque, as well as quiet operation. These 35- and 40-horsepower engines are more fuel efficient too, featuring a common rail, direct-injected, electronic fuel management system.
PREMIUM ENGINE PERFORMANCE
You also get engine features that make you more productive. Engine Speed Management makes it easy to maintain a constant engine speed during PTO operations. Just set the engine speed you need and return to the setting at the touch of a button.
AN EMISSIONS SYSTEM THAT’S AUTOMATIC
WORKMASTER™ compact tractors meet stringent Tier4 Final emissions requirements for cleaner air. The New Holland emissions treatment system doesn’t require you to add fluids or stop operations like some other tractors. The system is completely automatic, and uses a combination of internal Exhaust Gas Recirculation (EGR) and a Diesel Oxidation Catalyst (DOC) with a Diesel Particulate Filter (DPF).
MORE SPEED CHOICES THAN COMPETITIVE TRACTORS
New Holland gives you a choice of transmission, and both give you just the right speeds to get your job done effectively.
OPTION 1: 12 X 12 SYNC SHUTTLE GEAR TRANSMISSION
The smooth-shifting 12x12 Synchronized Shuttle Shift (SSS) transmission offers more speed options than found on competitive-brand tractors. In addition, the shuttle is conveniently located directly under the steering wheel, making it simple to change direction using your left hand, and ideal for loader work.
OPTION 2: HYDROSTATIC TRANSMISSION
For infinitely variable speed, choose the convenience of the three-range, two-pedal, hydrostatic transmission. Two foot pedals—one for forward, one for reverse—make it easy, even for a novice operator to mow, load or clear snow.
HITCH & HYDRAULICS
HEAVY CAST IRON DESIGN AND BIG HYDRAULIC POWER BIG HYDRAULIC FLOW MEANS BIG LIFTING POWER
High-capacity hydraulics deliver a dedicated flow of 8.2 gallons per minute (gpm) and a three-point-hitch lift capacity of 1,808 pounds. This robust system allows you to handle a wide variety of implements to make the most of your working time. A separate steering pump – 4.2-gpm on gear transmission models, 5.3-gpm on models with the hydrostatic transmission – gives you up to 13.5 gpm of total flow and ensures responsive steering, no matter what other hydraulic demands are made on the tractor.
BEST IN CLASS PTO
The electro-hydraulically engaged PTO is simple to use and independent of the transmission, just like on big ag tractors. Just turn a switch and the PTO is engaged and stays engaged even when changing speeds or depressing the clutch. This allows your implement to continue functioning while you maneuver the tractor. To stop the PTO and implement, simply depress the dial and the PTO is disengaged. It’s quick, simple and, mostly importantly, safe.
REAR AND MID PTO
A 540-RPM rear PTO and 2000-RPM mid-PTO are standard on WORKMASTER tractors equipped with the three-range hydrostatic transmission, while the mid-PTO is an option on tractors equipped with the 12x12 SSS transmission. The mid-mount valve/joystick is standard on all models, making it easy to add a loader.
ADAPT TO MORE ATTACHMENTS
You can never have too many attachment options. A two-position, extendable drawbar comes standard. Plus, standard telescopic stabilizers and fixed link ends make hookup easy for three-point-mounted implements.
FOUR-WHEEL DRIVE (4WD)
You’ll appreciate the performance of these 4x4 compact tractors. 4WD dramatically improves your productivity in wet, slippery and sandy conditions by providing additional traction and improving drawbar pull. 4WD comes standard on all WORKMASTER™ compact tractors.
REPORTING FOR HEAVIER DUTY
You’ll get superior pulling power, maximum dependability when operating heavy implements, and peak fuel efficiency in slippery or sandy conditions courtesy of the heavy-duty cast-iron rear axle.
EXTRA TRACTION ON DEMAND
It’s reassuring to have extra traction when you need it. Simply push down on the differential lock heel pedal to lock both rear wheels together for additional traction in slippery conditions.
WORRY-FREE WET DISC BRAKES
The best things in life are maintenance free. Smooth-applying wet disc brakes are sealed from dust, dirt and water for longer life. Whether equipped with the gear or hydrostatic transmission, WORKMASTER tractors provide independent left and right brake pedals to for assisted turning.
DESIGNED FOR OPERATOR COMFORT
No other small tractor manufacturer packs more ergonomic features into their “value” tractors than New Holland. Step onto the spacious operator platform, and you’ll appreciate the lack of clutter and the simple, straightforward instrumentation. Sit down and you’ll notice even more advantages.
THE BEST VIEW IS FREE OF OBSTRUCTIONS
One thing you’ll notice and appreciate right away is the unobstructed view offered by our WORKMASTER Series tractors. That’s because we put the muffler under the hood, and not in your line of sight as on other tractors.
PREMIUM SEATING WITH NO TRIPPING
A well-padded, contoured seat glides on a smooth track to place you at the right spot to maximize your comfort and visibility. And since the transmission controls are on the dash and fenders instead of the floor, the deck is wide open so that you can get on and off more easily.
DESIGNED WITH SAFETY AND STORAGE IN MIND
The Roll Over Protection System (ROPS) helps protect you if the machine tips over. All WORKMASTER Compact Tractors have a foldable ROPS so you can drive under trees and lower overhangs, and easily store the tractor in low-clearance areas.
ADDITIONAL COMFORT FEATURES
• Simple and straightforward electronic/analog LCD instrumentation provides an easy-to-read snapshot of your operational status.
• All controls are ergonomically placed for hours of fatigue-free operation.
• Left side step makes it easy to enter & exit the deck.imited Warranty. It provides 6 years of worry-free operation, including 2 years of bumper-to-bumper coverage plus an extra 4 years of powertrain protection.
|Emissions Level||T4B Final|
|Gross engine hp (kW)||40 (29.2)|
|Rated speed rpm||2600|
|No. of cylinders||3|
|Displacement cu. in. (L)||114.7 (1.9)|
|Fuel Tank gal. (L)||7.4 (28)|
|PTO horsepower hp (kW)||34.0 (25.4) Gear / 32.0 (23.9) HST|
|PTO speed rpm||540|
|PTO type||Independent Electro-Hydraulic Engagement|
|Mid-PTO||Standard on HST / Optional on Gear|
|Mid-PTO speed rpm||2000|
|Type/Control - Choice 1||12x12 Gear|
|Type/Control - Choice 2||3-Range Hydrostatic / Dual Pedal|
|Maximum forward speed mph (kph)||14.2 (22.9) Gear / 14.8 (23.9) HST|
|Cruise control||Standard HST|
|Rear differential lock engagement||Mechanical|
|Brake type||Wet, Multi-Disc|
|Hydraulics & 3-Point|
|Implement hydraulic gpm (Lpm)||8.2 (31)|
|Steering hydraulic gpm (Lpm)||4.2 (15.9) Gear / 5.3 (19.9) HST|
|Total flow gpm (Lpm)||12.4 (46.8) Gear / 13.5 (50.8) HST|
|Remote Valves||1 or 2 Opt.|
|3-point hitch||Telescopic Stabilizer / Fixed Link Ends|
|3PT lift capacity @ ball ends lb. (kg)||1808 (820)|
|3PT lift capacity @ 24 in. (610 mm) behind ball ends lb. (kg)||1433 (650)|
|3-Point linkage category||||
|Front Axle Options|
|Wheelbase in. (mm)||67.5 (1715)|
|Length in. (mm)||121 (3074)|
|Width in. (mm)||66.5 (1689)|
|Height (top of ROPS or Cab) in. (mm)||87.7 (2227)|
|Weight lb. (kg)||3067 (1391)|
