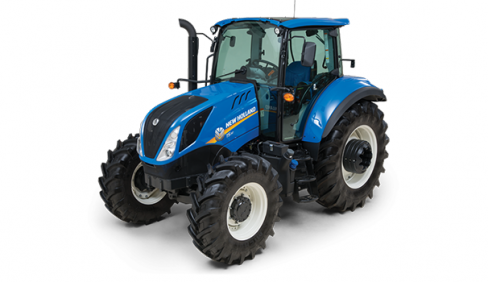

New Holland T5.110 / NOT AVAILABLE
For the first time on the T5 line, you can benefit from the smoother ride of New Holland’s well-known and proven Terraglide™ front axle suspension.
TERRAGLIDE™ FRONT AXLE SUSPENSION: OUTSTANDING TRACTION. UNSURPASSED COMFORT.
The optional New Holland Terraglide™ suspended FWD axle protects the tractor, mounted implements and the operator from heavy shock loads.
INCREASED PRODUCTIVITY AND EFFICIENCY.
The T5’s Tier 4B engine uses ECOBlue™ Compact HI-eSCR technology for Tier 4B compliance, and to reduce your fuel bills.
The T5 is a hard-working tractor with deluxe features and big power to handle every chore.
|Engine Type||Turbo Diesel with High Pressure Common Rail with Electronic Fuel Delivery Control|
|Make / Model||Fiat Powertrain Technology (FPT) F5G|
|# of Engine Cylinders||4|
|Displacement cu. in. (L)||207 (3.4)|
|Valves per Cylinder||4|
|Rated Engine Speed rpm||2300|
|Aspiration||Turbo Charger with Air-to-Air Intercooled|
|Rated Engine HP||107|
|Engine Speed at PTO Speed 540/1000||1938 / 1926|
|Emissions Certification||Tier 4B/Final|
|Tier 4B Emissions System||ECOBlue™ Compact HI-eSCR System (Selective Catalytic Reduction) with light CEGR (Cooled Exhaust Gas Recirculation)|
|Diesel Fuel Tank Capacity gal. (L)||43.6 (165)|
|DEF (AdBlue®) Tank Capacity gal. (L)||3.2 (12)|
|Service Interval - engine oil and filter, fuel filter, AdBlue DEF filter eng. hours||600|
|ISO BUS Class 2||Optional|
|Standard - Semi-Powershift mph (kph)||16X16 Electro Command™ - 1.62-25 (2.60-40)|
|Option 1 - with AutoShift™ mph (kph)||16X16 Electro Command™ with AutoShift™ - 1.62-25 (2.60-40)|
|Option 2 - with Creeper Gear mph (kph)||32X32 Electro Command™-Creeper - 0.16-25 (.26-40)|
|Option 3 - with Creeper Gear with AutoShift™ mph (kph)||32X32 Auto Command™-Creeper with AutoShift™ - 0.16-25 (.26-40)|
|Lift Capacity with Standard External 80mm rams lbs. (kg)||8,084 (3667)|
|Fixed Displacement Implement Pump Flow gpm (l/m)||21.1 (80)|
|Steering Pump Flow gpm (l/m)||11.4 (43)|
|Standard Hydraulic Rear Remotes||2 Mechanical with Configurable Detents|
|Optional Hydraulic Rear Remotes||3 Mechanical, 2 with Configurable Detents|
|Mid-Mount Valve Option 1||2 Function Mechanical|
|Mid-Mount Valve Option 2||2 Function Electronic|
|Axle Class||1.5 HD|
|Standard Front Axle||Standard 4WD front axle|
|Optional Front Axle||TerraGlide™ Suspended 4WD Front Axle|
|Optional Traction Management System||TerraLock™ Automatic 4WD Engagement and Differential Lock System|
|Shipping Weight (Typical Weight, less ballast): lbs. (kg)||10,031 (4550)|
|Maximum Gross Vehicle Weight: Road/Field lbs. (kg)||17,637 (8000) / 13,669 (6200)|
|Overall Length in. (mm)||165 (4191)|
|Wheelbase in. (mm)||93.7 (2380)|
|Height, Top of Cab in. (mm)||107 (2718)|
|Height, Top of Exhaust in. (mm)||108 (2745)|
