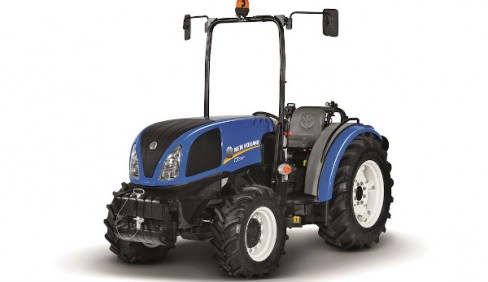

New Holland T3.70F
COMPACT, STREAMLINED DESIGN
With a narrow frame and a low, overall height of only 54 inches to the top of the steering wheel, T3F tractors navigate easily in between precious crops as well as under low branches and overhangs.
T3F tractors are ideal for powering rotary cutters and small sprayers in large operations. They are also a prime choice for small orchards, hop yards, vineyards, nut groves, blueberry farms, poultry houses and any operation where you need a compact utility tractor.
HEAVY-DUTY POWER IN AN AGILE PACKAGE
T3F compact specialty tractors pack 40 to 60 PTO horsepower in a heavy-duty, 5,000-pound design without sacrificing maneuverability or agility.
A GREAT VIEW COMES STANDARD
The sloped hood and curved rear fenders provide for excellent all-around visibility from the comfortable straddle deck platform.
RESPONSIVE, FUEL-EFFICIENT POWER
Powered with high-performance, three-cylinder engines from 40 to 60 PTO horsepower, T3F compact specialty tractors easily tackle routine chores in narrow, low-clearance areas. The common rail fuel injection provides optimum fuel economy.
The turbocharged, intercooled T3F engines feature four valves per cylinder for fast engine responsiveness. High torque rise from 47% to 54% assures you of consistent power at high RPMs.
The simple 12x12 mechanical shuttle transmission features three constant mesh ranges with four synchronized gears in each range to give you a selection of speeds to match the job at hand.
SIMPLE, ERGONOMIC CONTROL
The range lever is mounted on the right side of the steering wheel, and the gear lever is located on the right-hand console for convenient operation.
EASY CHANGE FROM FORWARD TO REVERSE
The handy shuttle lever located on the left side of the steering column for quick direction changes and smooth maneuvering.
A creeper transmission is optional for precise, low-speed applications.
HITCH AND HYDRAULICS
SUPERIOR HYDRAULIC CAPACITY AND EASE
T3F tractors boast a dual-pump hydraulic system with a total flow of 20.2 gallons per minute (gpm) with a 12.6-gpm implement pump and 7.6-gpm services pump.
Convenient, color coding allows you to easily identify hydraulic control levers and rear remote outlets. Two remotes are standard with a third optional.
4,000-LB LIFT CAPACITY
The heavy-duty T3F Series three-point hitch allows you to tackle specialty applications easily with 4,000-pound lift capacity.
EASY, LIFT-O-MATIC™ HITCH CONTROL
Lifting and lowering implements is as easy as flipping a switch thanks to New Holland’s Lift-O-Matic™ hitch lift control.
EXTRA TRACTION WITH THE PUSH OF A BUTTON
A rocker switch on the steering column electronically engages the 4WD front axle to deliver the traction you need. When you press both brake pedals, the 4WD front axle engages automatically to provide additional stopping power.
COMFORT THAT MAKES YOU MORE PRODUCTIVE
Ensuring your comfort during long work days was a top priority when designing the T3F Series tractors. Wide entry on both sides of the tractor provides easy access to the comfortable straddle-deck platform. Controls are thoughtfully placed for easy access. The vinyl suspension seat and adjustable telescopic steering wheel provide for added comfort.
The sloped hood design gives you a great view over the front of the tractor. Curved rear fenders are low and tight to the wheels to provide excellent visibility of the side and rear of the tractor so you can clearly see and operate all implements.
EASY SERVICING AND LOW COST OF OWNERSHIP
The T3F hood flips up for convenient, complete access to the engine and service points. The engine’s simple EGR + DOC only emissions system is maintenance-free. There’s no need for DPF or regeneration.
LONG SERVICE INTERVAL
A 600-hour oil change interval reduces maintenance time and expense.
|Displacement cu. in. (L)||179 (2.9)|
|Gross engine horsepower||64|
|Rated Engine Speed rpm||2300|
|Emissions Tier 4B||CEGR + DOC|
|Standard||12X12 Mechanical Shuttle|
|Lift capacity @ 24” lbs. (kg.)||4,000 (1814)|
|Rear remotes||2 or 3|
|Imp. pump gpm (L/min)||12.6 (48)|
|Service pump gpm (L/min)||7.6 (29)|
|Base PTO RPM||540/540E|
|Weight - ROPS/4WD lbs. (kg.)||5,000 (2268)|
|Height to top of steering wheel in. (mm)||51 (1287)|
|Overall height - top of ROPS in. (mm)||97 (2476)|
|Overall length in. (mm)||143 (3637)|
|Minimum Overall width in. (mm)||57 (1448)|
|Wheelbase 4WD in. (mm)||73 (1866)|
