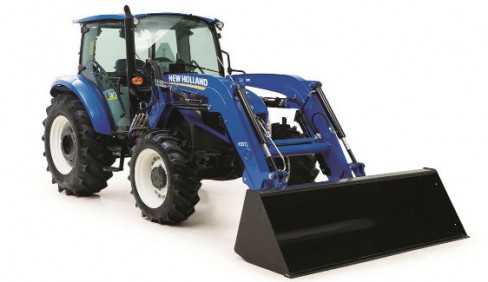

New Holland PowerStar65
CAB AND OPERATOR PLATFORM
Whether you choose a PowerStar™ model with a spacious, flat-deck ROPS platform or factory-installed, all-weather VisionView™ cab, you get best-in-class visibility, comfort and ergonomics make sure you can operate with ease. When you take your seat, there is no doubt that PowerStar tractors were designed with the operator in mind.
COMMAND ARC CONSOLE
Whether you choose the VisionView cab or ROPS platform, the New Holland exclusive Command Arc console places controls along an arch to match your natural arm movements to increase your productivity and reduce fatigue. Never again will you feel like a contortionist in your own tractor. Detailed designs like these increase your operating productivity and reduce fatigue.
CAB COMFORT NEVER BEFORE SEEN IN A UTILITY TRACTOR
While the cabs on other utility tractors can be cramped, with little storage space or room to move, the optional ultra-quiet PowerStar cab takes operating comfort and ease to a new level. A wide threshold and two wide doors allow for easy access from either side. Take your seat and you’ll appreciate the spacious dimensions of your office on wheels. The flat platform provides ample legroom and you also have plenty of shoulder and head room. The standard air-ride seat swivels to the right for a convenient of all rear implements. A spring loaded, large, comfortable cloth cushioned instructor seat is also a factory-installed option.
A 360-DEGREE VIEW
Large panels of glass with thin, smartly placed support pillars give you outstanding 360-degree visibility. You don’t need to lean forward to see your loader thanks to the curved arc of the top of the windshield and optional high-visibility roof panel that gives you a perfect view of the loader raised to full height. Night visibility is great too, so you can work productively at any hour. A full range of work lights are standard and can be angled to suit the application. Cab models feature eight lights total, while ROPS models feature five.
TILTING WHEEL AND INSTRUMENTS
The steering wheel tilts for optimum fit to each customer size. The instrument cluster is actually mounted on the steering column, tilting along with the steering wheel so you always have an easy view to the information you need.
VENTS IN ALL THE RIGHT PLACES
The PowerStar temperature control system simply can’t be beat. The high-performance heating and air conditioning system includes two fans and 10 vents that provide air flow to both upper and lower portion of the cab, two vents are dedicated to warm or cool your feet.
CONVENIENT CONTROLS LAYOUT
Powerstar tractor design puts the controls where the operator needs them. The use of virtual reality and customer profile make operator fatigue virtually non-existent in the daily chores.
ENJOY THE RADIO
We know the “extras” mean everything to you. That’s why New Holland makes a Bluetooth™radio standard in every cab unit.
MONITORS ARE WELCOMED
Add the optional baler bar with fully adjustable position settings to place bale monitors and control boxes in the natural line of sight for improved safety. It’s perfect choice for your haying operations.
SMOOTH SHIFTING AND SHUTTLING
New Holland offers a simple selection of transmission choicesthat are designed to suit your operational needs.
• 12 x 12 mechanical* or hydraulic power shuttle transmission provides three ranges with four synchronized gears in each range.
• 20x20 hyrdaulic power shuttle with creeper transmission adds two additional creeper ranges with four gears in each range.
• Regardless of transmission choice a left-handed shuttle is included.
MECHANICAL SHUTTLE SHUTTLE
The 12x12 mechanical shuttle transmission is the simplest, most economical transmission available on all PowerStar models except for the PowerStar 65. This transmission is perfect for basic haying applications, like raking and tedding, where direction changes are not frequently required.
HYDRAULIC POWER SHUTTLE
The hydraulic power shuttle option is ideal for jobs with frequent direction changes, like loader and blade work. With the shuttle lever is located to the left of the steering wheel, shuttling is effortless and there’s no need to remove your left hand from the steering wheel. When you choose the hydraulic shuttle option, you also get the benefit of a wet PTO clutch for extended life.
A 20x20 creeper option is available with a hydraulic power shuttle for speeds as slow as 5.5 feet per minute (depending on tire size), The creeper lever is located on the left-hand console for easy shifting when going into or out of creeper mode.
OPTIONAL HIGH-SPEED TRANSPORT
Save time between jobs with a 24.9-mph (40-kph) top travel speed. It’s optional on models equipped with FWD axle. (Speeds will vary with tire selection)
NON STOP, RELIABLE, FUEL-EFFICIENT POWER
PowerStar™ tractors now have more power than ever, boasting a 207 cubic-inch, 3.4 liter engine producing 50 to 100 PTO horsepower. Coupled with four-cylinders and turbo charged, these Tier4 diesel engines rise to the challenging conditions with smooth lugging power. Since these engines meet emissions regulations without requiring regeneration, you get the non-stop power you need for field PTO (power take off) work, tough roadside mowing or heavy loader work all day long.
F5D ENGINES WITH DIESEL OXIDATION CATALYST (DOC)
In addition to precise fueling and optimum response, the F5D engine also reduces fuel consumption by up to 13%. This super-quiet engine develops up to 74 horsepower and up to 310 Nm of torque for guaranteed productivity. The flat power curve between 1,900 and 2,100 rpm maintains maximum performance through a larger horsepower range, giving you more horsepower and efficiency than ever before. The engine emissions system has been optimized to require only cooled exhaust gas recirculation (CEGR) and a diesel oxidation catalyst (DOC) in order to meet emissions, ensuring non-stop power by eliminating any need for regeneration.
F5G ENGINES WITH ECOBLUE™ COMPACT HI-ESCR SYSTEM WITH LIGHT CEGR
The F5G power unit provides exceptional fuel economy and achieves maximum power at a mere 1,800 rpm and is available up to 2,300 rpm, which is typical for work applications. For these larger frame PowerStar tractors, New Holland employs the ECOBlue™ Compact HI-eSCR system with light CEGR (Cooled Exhaust Gas Recirculation) to achieve Tier 4B compliancy. It provides some of the same efficiencies the SCR system provides for larger-horsepower tractors, yet is compact enough to maintain the utility tractor size.
COMMON RAIL. COMMON SENSE.
More responsive tractors. Lower fuel bills. This is the result of Common Rail technology that delivers less engine noise and precise fueling for optimal response and reduced reduced fuel consumption.
