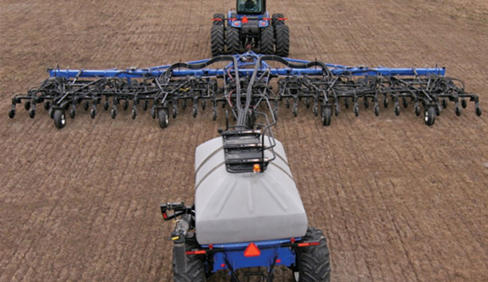

New Holland P2060 Air Drill
CONSISTENT SEEDING ACCURACY
Hills, terraces and gullies pose no problem since New Holland air drills feature a flexible frame design that follows field contours for precise seed placement.
SIMPLE DEPTH CONTROL
It’s easy to set exact, repeatable seed depth in every field, eliminating the fading, leaking and phasing problems associated with other designs.
CONFIGURED TO YOUR NEEDS
Choose your seeding style, and then equip your New Holland air drill to match your needs with your choices of trips, openers.
Self-lubricating bushings, chrome pins and durable polyurethane pads are located at frame flex joints for long frame life and continued depth accuracy.
BIG IN THE FIELD COMPACT IN TRANSPORT
The P2060 air hoe drill delivers simple, precise seed placement in 60’ & 70’ widths for increased productivity. Transports & storage are easier than ever with the innovative fold-back design.
MULTIPLE CONFIGURATIONS FOR ADDED FLEXIBILITY
The P2060 features configuration choices to match your seeding style, including conventional C-shanks and vertical edge-on shanks to reduce soil disturbance and provide better cutting through heavy surface residue. For tough conditions and double-shoot operations, 350-pound standard trips or 550-pound trips are available.
OPENERS TO MATCH CONDITIONS
A wide array of Stealth™ openers for single-shoot, double-shoot, side-band, paired row options are available for the P2050 and P2060 air hoe drills to let you place seed and fertilizer precisely where you choose.
New Holland Stealth™ openers use replaceable tips that work for both narrow-row and spread-row seeding styles. C shank and edge-on shank openers available.
• Low soil disturbance
• Very narrow spread of 7/8 to one inch
• For use with any press wheel
• Heavy-duty, gumbo or carbide tips match soil conditions
• Designed for low-disturbance seeding
• Wider product spread allows more fertilizer to be placed with the seed
• Spread tips are available in three-, four- or five- inch sizes
• For use with press wheels that match row widths
Stealth™ double-shoot attachments allow one-pass placement of seed and fertilizer. Seed/fertilizer separation prevents seedling damage. C shank and edge-on shank openers available.
• Places seed one inch above and one inch beside the fertilizer
• Wing forces soil over the fertilizer trench to provide separation from seed
• Can be used with all press wheels
• Available in standard or long-life carbide
• Seed is placed one inch above and one to two-and-a-half inches to both sides of the fertilizer
• Three inch available in HS format for heavy soils and gumbo, and in LS format for light soils and sandy loam
• Three-, four- and five-inch available in carbide for extended wear to maintain integrity of seed bed
• Designed to force soil over the fertilizer trench to provide separation from the seed
• For use with press wheels that match row widths
PRECISE SINGLE POINT DEPTH CONTROL
Single-point depth setting located on the front of the air drill hitch provides simple, exact, repeatable seed depth control across the entire width of the machine. This adjustment allows the operator to quickly and conveniently set precise seeding depths to match a wide range of crops and soil and moisture conditions.
SUPERIOR GROUND FOLLOWING
The P2060 model includes a flexible frame non-slab that allows each wing and press wheel to follow the contours of the ground independently. The superior ground following capabilities enhances seed placement and accuracy. This flexible design also minimizes frame stress for more durability than traditional welded joints.
CONSISTENT SEED AND FERTILIZER PLACEMENT
Left to right the P2060 features five independent frame sections. A patented two paired-rank frame design delivers precise depth accuracy from the front to the rear of the machine. The front two ranks follow the terrain at a depth set by the nearby caster assemblies, and the rear two ranks follow the ground on which the press wheels run. In addition all tires and packer gangs provide equal weight distribution across the entire width of the drill.
PATENTED ADJUSTABLE PACKING SYSTEM
The exclusive variable packing pressure system raises the bar and allows the operator to tailor packing pressure from field to field for greater efficiency. This is versatility allows for accurate fine tuning in variable soil moisture conditions and for small seeded crops such as canola.
CUSTOMIZED OPENERS AND CLOSING OPTIONS
A wide array of Stealth™ openers for single-shoot, double-shoot, side-band and paired rows let you place seed and fertilizer precisely where you choose. Customized soil closing options include single-bar, heavy harrow or disc levelers.
WIDE CHOICE OF PACKER WHEEL OPTIONS
Multiple packing choices include gang style press wheels in semi-pneumatic, steel or walking beam pneumatic.
SEMI-PNEUMATIC PRESS WHEELS
Rubber press wheels flex to shed soil build-up in heavy, sticky soil conditions. The flatter profile rides over a wider area for less packing pressure—just right for soils where too much packing can be a problem or to accomplish a smoother finish. 3-inch semi-pneumatic press wheels can be used with knife openers or when spreading seed up to three inches. It also works for narrow double-shoot 4-inch rubber press wheels are effective for many applications where seed is spread up to 4 inches. 5-1/2 inch semi-pneumatic press wheels offer on-row packing in wide seed spread applications.
STEEL PRESS WHEELS
Steel press wheels are used in more abrasive sandy and rocky conditions. AV-profile concentrates packing pressure onto a smaller area for higher pressure over the seed. The shape of the furrow also provides protection from wind and water erosion. 3-1/2 inch steel press wheels work well with openers that spread seed up to 3-1/2 inches, or with narrow double-shoot openers. The soil profile is a wide V-shape. 4-1/2 inch steel press wheels spread the packing pressure over a wider area for use when spreading seed or for wide doubleshoot applications. The soil profile is the flattest of the steel wheels.
PNEUMATIC PRESS WHEELS (P2060 Only)
The walking beam, pneumatic wheel packing option is available on the P2060. The pneumatic tire pressure can be adjusted which provides additional flexibility to accommodate various soil and moisture conditions. The two tire style options available are 5.9” round face or 6.5” flat face depending on the type of soil and field finish desired.
|P2060 AIR DRILL|
|Base size||60 (18.3)|
|No. of sections||5|
|No. of ranks||3|
|Working Widths (outside shank to outside shank + spacing)|
|10 (25.4) in. (cm) ft. (m)||60 (18.3)|
|12 (30.5) in. (cm) ft. (m)||60 (18.3)|
|Number of Shanks|
|10 (25.4) in. (cm)||72|
|12 (30.5) in. (cm)||60|
|Main frame ft. (m)||10 (3.05)|
|Inner wing ft. (m)||15 (4.57)|
|Outer wing ft. (m)||10 (3.05)|
|Transport width ft. (m)||18.4 (5.61)|
|Transport height (max.) ft. (m)||16.6 (5.03)|
|Base machine weights|
|10 in. (25.4 cm) spacing lbs. (kg) est.||33,898 (15408)|
|12 in. (30.5 cm) spacing lbs. (kg) est.||32,646 (14839)|
|Main frame casters||11Lx15FI (Duals)|
|Inner wing casters||11Lx15FI (Duals)|
|Outer wing casters||11Lx15FI (Singles)|
|Rear transport wheels||11Lx15FI (Singles)|
|Packing||Individual on row|
|Standard pneumatic packers||Smooth profile 4.8x8|
|Optional semi-pneumatic packers||Smooth profile 4.8x8|
|Openers||Double shoot, side band (2” lateral, 1” vertical separation)|
|Air package||EZ Flow single or double shoot|
|Blockage monitor||Basic or expanded IntelligentAg Wireless Flow Blockage System|
|Tandem wheels for center||Standard; high flotation 12.5Lx15FI available|
|Tandem wheels for inner wing||Standard; high flotation 12.5Lx15FI available|
|Tandem wheels for outer wing||N/A; high floatation available Option; high floatation 12.5Lx15FI available|
|Trip assemblies 10 in. (25.4 cm)||Fully adjustable from 275-550 lbs.|
|Trip assemblies 12 in. (30.5 cm)||Fully adjustable from 275-550 lbs.|
|Rank to rank spacing in. (cm)||39 (99)|
|Frame/ground clearance in. (cm)||30 (76.2)|
|Hydraulic system||High-quality cylinders performing both depth and wing lift functions|
|Depth control||Individual opener depth control|
|Safety chains and lights||Standard|
|Rear tow hitch||Standard auxiliary hitch|
|Packing pressure adjustment||ISO BUS 11783 In cab electronic adjustment of packing pressure|
