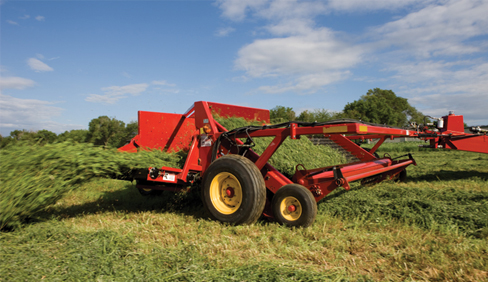

New Holland H5420
THREE MODELS, MORE OPTIONS, ALL THE RIGHT FEATURES
If well-matched, high-quality windrows are what you're after, then we've got you covered. A choice of three models, with optional extensions and attachments, let you match the configuration to your operation. Plus, a gentle floating pickup comes standard so you get everything you want in a windrow, and nothing you don't.
Powered by a 70 hp tractor with one remote, the center-pull crop merger offers a simple, economical way to merge windrows up to 12 feet. Extensions are available to expand the merge area up to 14 feet.
For larger acreage, choose between two side-pull models. The convenient hydraulic swing-tongue design provides offset operation, so tractor tires stay away from the crop swath. Both the 9-ft H5420 and the 12-ft H5430 can be outfitted with extensions to increase merging area to 18 feet.
A GENTLE FLOATING PICKUP KEEPS THE RIFFRAFF OUT
Dirt and stones have no place in a premium windrow. That's why a floating pickup comes standard to skim ground contours while replaceable three-prong teeth carefully lift valuable crop, keeping leaves intact and debris in the field.
A CONVEYER BELT DESIGNED RIGHT
The 42-inch conveyer efficiently transfers crop with a ribbed belt that provides a sure grip and extra high back panels to keep crop from exiting early. An anti-wrap device on the bearings prevents crop from wrapping and damaging bearing seals.
SIMULTANEOUS SPEED ADJUSTMENTS
Working in harmony, the pickup and conveyer speeds adjust simultaneously for smooth crop flow.
MERGE RIGHT, INVERT LEFT
All H5400 crop mergers are designed to merge crop to the right. To invert crop using the optional inverter chute, simply switch the location of the two quick-disconnect hoses to change the direction of the conveyor belt.
For merging wide swaths, extensions are available for all three models, adding 2 feet to the center-pull and a choice of 2-, 4- or 6-foot extensions for side-pull models.
BOOST HYDRAULIC FLOW
Don't let a single remote tractor stand in the way of your side-pull crop merger. A self-contained hydraulic pump is available for those without adequate flow, allowing the merger to work efficiently off one remote.
|Width, in. (mm)||42 (1067)|
|Length, in. (mm)||175.5 (4458)|
|Conveyor Drive type||Hydraulic|
|Discharge side (right or left)||Right- left to invert only|
|Shiftable cross conveyor||Not available|
|Inverter chute option (yes/no)||yes|
|Optional conveyor extensions, ft. (mm)||2 (610), 4 (1219), or 6 (1829)|
|Optional conveyor- folding or fixed||Hydraulically folding|
|Conveyor extension shut-off||Standard|
|Cross conveyor shut-off kit||Optional|
|Transport width, in. (m)||172 (4.4)|
|Transport length, in. (m)||264 (6.7)|
|Transport height, in. (mm)||63 (1600)|
|Frame and Tongue|
|Ground clearance under raised pickup, in (mm)||11.75 (298)|
|Parking stand or jack||Jack|
|Transport safety chain||Standard|
|Recommended operating speeds, mph (k/h)||2 to 12 (3.2 to 19.3)|
|Maximum transport speed, mph (k/h)||20 (32)|
|Tractor control box||Standard|
|Wheels and tires (size)||(3) 6.70 x 15|
|Merging Capability - feet (m) of cut|
|Base unit||9 to 12 (2.7 to 3.7)|
|With 2-foot (.6 m) extension||9 to 14 (2.7 to 4.3) / 9 to 16 (2.7 to 4.9)*|
|With 4-foot (1.2 m) extension||9 to 16 (2.7 to 4.9)/ 9 to 18 (2.7 to 5.5)*|
|With 6-foot (1.8 m) extension||NA|
|Type||Spliced belt w/plastic fingers|
|Pickup tooth type||Replaceable 3-prong plastic|
|Separate belt sections||3 X 3' (.9 m)|
|Adjustable pickup and conveyor speed (Tractor driven)||Tractor remote flow control|
|Adjustable pickup and conveyor speed (Self-contained)||Tractor PTO speed|
|Floating pickup||Standard, on gauge wheels|
|Gauge wheel size||5.70 x 8|
|Hydraulic flow requirements, gpm @ psi (lpm @ bar) (w/tractor hydraulics)||16 @ 2000 (61 @ 138)|
|Hydraulic flow requirements, gpm @ psi (lpm @ bar) (w/self-contained hydraulics)||5 @ 2000 (19 @ 138)|
|Tractor remotes required||2 w/tractor driven; 1 w/self-contained|
|Remote hydraulics type||Open or closed center|
|Hydraulic remote valve type (w/tractor hydraulics)||Double-acting w/detent and flow control on at least one valve|
|Hydraulic remote valve type (w/self-contained hydraulics)||Single or double acting|
|Recommended tractor size||70 HP (52 kW)|
|Seven pin light connector||X|
|Base unit weight, tractor hydraulics, lbs. (kg)||3320 (1505)|
|Base unit weight, self-contained hydraulics, lbs. (kg)||3780 (1714)|
