New Holland 256 / NOT AVAILABLE

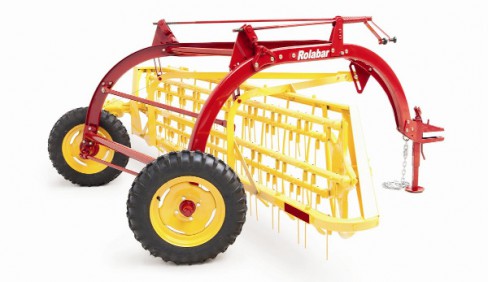

GROUND-DRIVEN MODEL 256
For fast raking in a compact size, the Model 256 is a great, ground-driven choice. With an 8-foot, 6-inch raking width, it’s easy to maneuver in small fields, yet provides excellent durability. Since both wheels drive, you get uniform windrows on both right and left turns.
PROVEN RAKING FOR OVER 50 YEARS AND COUNTING
Rolabar® rakes have evolved to help today’s livestock, dairy and commercial hay operations stay ahead of schedule. Making quality hay is a New Holland tradition, and a part of Rolabar rake DNA, then and now.
Rolabar® rakes are built for tough conditions, reliable operation and long life, making them a solid investment for seasons to come.
SETTING THE STANDARD FOR CLEAN RAKING
Rolabar® rake tines closely follow ground contours to put more clean hay in the windrow. Offset wheels are set close to the rake basket on the Model 258, while the Model 230 offers a full range of basket flotation settings as well as standard front and rear gauge wheels which improve raking performance.
CREATE THE PERFECT WINDROW
A full range of basket angle adjustment allows you to create fluffy windrows for better air flow and improved drydown, or create tight windrows that better resist scattering in windy conditions.
|Raking width ft. in. (mm)||8'6" (2591 mm)|
|Width overall ft. in. (mm)||10'3" (3124 mm)|
|Height overall ft. in. (mm)||4'4" (1321 mm)|
|Length overall ft. in. (mm)||10'1" (3073 mm)|
|Wheel Tread ft. in. (mm)||5'6" (1676 mm)|
|Transport Speed mph (km/h)||20 mph (32 km/h)|
|Operating Speed mph (km/h)||2 to 7 (3 to 11)|
|Weight, approx. lbs. (kg)||790 lbs. (358 kg) less tires|
|Main frame in. (mm)||4 (102) channel, cross-braced with heavy tubular members|
|Basket||One piece; welded heavy steel angle|
|Gearbox (ground drive)||Heat-treatedgears and clutch running in grease on tapered roller bearings|
|Tine bars||5, standard high carbon|
|Tines||Steel or rubber-mounted (only rubber-mounted available on hydraulic models)|
|Number of tines||90|
|Tine Bar Bearings||Single ball bearing|
|Tractor requirement hp||30|
|Standard safety equipment||Reflective strips front & rear; safety tow chain|
