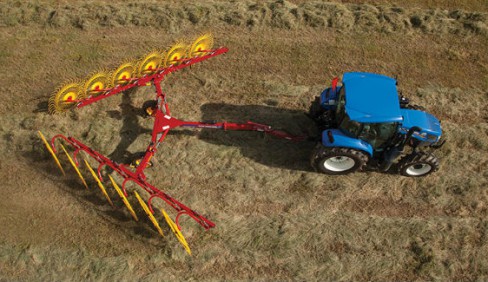

New Holland 1428 Plus 14-Wheel
DEPENDABLE, HIGH-SPEED RAKING
Individual floating rake wheels provide cleaner raking and help form more uniform windrows that are easier to bale.
DURABLE, COMPACT DESIGN
The well-built frame provides the strength and reliability you need, and it’s compact and stable so you can move fast between farm and field.
HIGH FRAME CLEARANCE
Unlike other carted wheel rakes on the market, ProCart™ rakes offers a high frame clearance to accommodate high-volume crops.
A CHOICE OF MODELS
With raking widths from 18 to 28 feet, and a choice of five different models, there’s one perfect for you.
CLEANER RAKING WITH INDEPENDENT RAKE WHEEL FLOTATION
Individual floating rake wheels follow ground contours independently to gather every bit of the swath to cause less stubble damage compared to rakes with tandem-mounted rake wheels. Suspended by an adjustable compression spring, each rake wheel can be adjusted to your crop and field conditions for the cleanest possible raking.
TURN MORE HAY WITH CENTER KICKER WHEEL OPTION
The hay at the center of the swath typically remains unraked. Fluff it with the center kicker wheel(s), which moves and turns hay for faster, more even crop drying and easier pickup by the baler. A single center kicker wheel is available on ProCart 819/1022/1225 models and a two wheel kit is available for ProCart Plus models.
|1428 Plus 14-Wheel|
|Number of finger wheels||14|
|Finger wheel diameter in (m)||55 or 60 (1.4 or 1.5)|
|Teeth per wheel||40|
|Rake wheel tine diameter in (mm)||0.28 (7) or .30 (7.5)|
|Overall length* ft. (m)||26' 5" (8.04)|
|Minimum transport height ft. (m)||9' 2" (2.8)|
|Transport width ft. (m)||9' 2" (2.8)|
|Tread width outside of tires ft. (m)||8' 1-1/2" (2.48)|
|Minimum working width* ft. (m)||24' 11" (7.6)|
|Maximum working width* ft. (m)||28' (8.5)|
|Minimum windrow width* ft. (m)||3' (0.9)|
|Maximum windrow width* ft. (m)||6' 7" (2.0)|
|Operating Weight lbs. (kg)||3,038 (1,378)|
|Tires||205 - 75/15|
|Tractor requirement hp (kW)||60 (44)|
|Tractor requirement, hydraulic||2 DA|
|* Depending on crop conditions|
