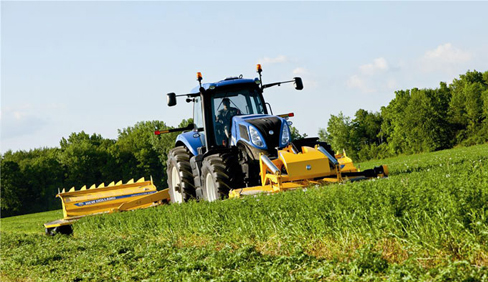

New Holland MegaCutter 512 Front Mounted Mower Conditioner
DURABILITY TO HANDLE TOUGH CONDITIONS
Every part of the MegaCutter system is ruggedly built for high-speed mowing.
THE COMBINATION THAT’S RIGHT FOR YOU
New Holland offers triple-swath productivity both with conditioning and without to fit your crops, your tractor horsepower and your budget.
UP TO 50 ACRES PER HOUR*
MegaCutter™ mounted disc mowers and disc mower-conditioners match capacity to your imagination.
*50 acres per hour estimated capacity when operated at 15 mph and 82% efficiency.
ROLL OR FLAIL CONDITOINING
If your crops require conditioning, MegaCutter™ disc mower-conditioners offer you the choice of gentle rubber chevron intermeshing rolls perfect for legume crops or steel V-tine flail conditioning for grass hay.
|MegaCutter™ 512 Front Mounted Mower Conditioner|
|Working Width, ft. in. (m)||11 ft. 10 in. (3.6)|
|Transport Width, ft. in. (m)||11 ft. 3 in. (3.4)|
|Transport Height, ft. in. (m)||-|
|Weight, lbs (kg)||2976 lbs. (1350)|
|Number of Discs||9|
|Number of Blades||18|
|Blade Length in. (mm)||4 in. (105)|
|Stubble Height Range with standard shoes, in. (mm)||¾'' in. to 2 ¼ in. (20 to 55)|
|PTO Speed, (rpm)||1000|
|Requirement Tractor Power ,hp (kw)||95hp/70kw|
|Conditioner Rotor Speed, (rpm)||900/600|
|Hydraulic Valves Required||1 Single Acting|
|Windrow Width, ft. in. (m)||4 ft. 4 in. (1.3)|
|Standard PTO Yoke||1 3/8" - 6|
|Optional PTO Yoke||1 3/8" - 21|
|PTO Rotation||CW or CCW|
|Hitch Category||Category 2/3N|
