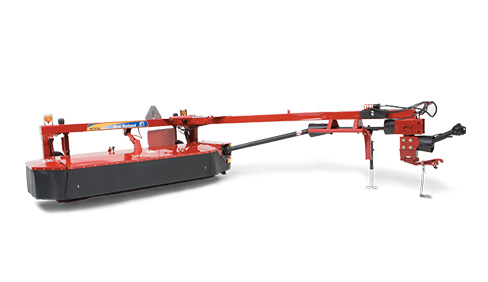

New Holland Discbine® 316 (roll)

Double tap to zoom



You can rely on genuine Discbine® disc mower-conditioners for smooth, trouble-free mowing, even in tough conditions.

ShockPRO™ disc hubs protect the cutterbar by absorbing harmful impacts and can be changed quickly so you’re back making hay quickly.

The reliability of the MowMax™ II true modular disc cutterbar is backed by three full years of complete warranty coverage. It includes one full year of base factory warranty, plus two additional years of disc cutter bar coverage. It’s peace of mind direct from the New Holland factory, so cut close with confidence.

New Holland’s WideDry™ conditioning systems produce a thinner crop mat for smoother crop flow, more uniform conditioning and faster drydown.


Discbine® 316 (roll)
New Holland-Disc Cutterbar
Type MowMax™ II True Modular Disc Cutterbar
Width of Cut, ft. in. (m) 16' 3'' (4.95)
Number of discs 10
Number of knives 20 (2 per disc)
Disc Speed, rpm 2,250
Cutting angle 2 to 10 degrees
Hydraulic Cutting angle control Standard
Standard Cutting height skid shoe, in. (mm) Standard 0.79-2.07 (20-69
Fixed Raised, high-stubble skid shoe Optional 79-5.75 (20- 146)
Adjustable Raised, high-stubble skid shoe Optional 3-5.5 (76 - 140)
BioMass skid shoe Optional 5-7.75 (127- 197)
Ground clearance with header fully raised, in. (mm) 16.2" (411)
Cutterbar Flotation Vertical and lateral, adjustable springs
QuickMax™ Knife Change System Optional
ShockPro™ Disc Drive Hub protection system Standard
MowMax™ 3-year cutterbar protection plan Standard
Chevron-Design Roll Conditioner
Chevron-Design Roll Conditioner Optional
Type. Choice of molded rubber or steel rolls
Roll Length, in. (mm) 125 (3175)
Roll Diameter, in. (mm) 10.4 (264)
Roll Drive 4 HB V-belt and enclosed gears
Roll Speed, rpm Two-Speed: 750 or 640
Roll Pressure System Torsion Bar
Conditioner Intensity Adjustment Single crank adjustable roll pressure and two stop bolts to adjust roll gap
LeaningEdge™ Flail Conditioner
LeaningEdge™ Flail Conditioner Optional
Number of LeaningEdge flails 120
Semi-Swinging LeaningEdge flail design Standard
Rotor Diameter, in. (mm) 22 (560)
Standard Speed, rpm 1042
Optional Slow Speed, rpm 752
Drive. 4 HB V-belt
Conditioner Intensity Adjustment. Single crank adjustable rotor hood
Optional Textured Hood Liner Kit Optional
Standard Drawbar -
Drawbar Swivel Hitch Optional
2-pt Swivel Hitch Optional
Height, Transport, ft. in. (m) 7' 5" (2.26)
Height, Operating, ft. in. (m) 6' 7" (2.01)
Width, Transport, ft. in. (m) 16' 7" (5.05)
Width, Operating, Std. Drawbar Hitch, ft. in. (m) -
Width, Operating 2-pt Swivel Hitch, ft. in. (m) 25' 7" (7.8)
Width, Operating Drawbar Swivel Hitch, ft. in. (m) 19' 7'' (6.0)
Length, Transport, Standard Drawbar Hitch, ft. in. (m) -
Length, Transport, 2-pt Swivel Hitch, ft. in. (m) 32' 0'' (9.7)
Length, Transport, Drawbar Swivel Hitch, ft. in. (m) 31' 0'' (9.4)
Length, Operating, Standard Drawbar Hitch, ft. in. (m) -
Length, Operating, 2-pt Swivel Hitch, ft. in. (m) 26' 7'' (8.1)
Length, Operating Drawbar Swivel Hitch, ft. in. (m) 25' 7'' (7.8)
Weight, Operating lbs. (kg) 6,700 (3039)
Drive 1000 rpm PTO, enclosed gears and four HB belt
Drive Protection
Drive Protection Slip clutch and over-running clutch
Hydraulic swing Standard (double-acting cylinder)
Operating Position Center-Pivot, Right or Left Side
Hydraulic lift Standard (operated by two single-acting cylinders; master/slave)
Hydraulic tilt Optional (operated by single-acting cylinder and incorporated into the lift system)
Material Discharge
Swath, ft. (mm) 10 (3000)
Windrow, ft. (mm) Adjustable from 3 to 8 (914 to 2400)
Wide Thin Fin Kit (100 % Coverage) -
Operating, mph (kph) 0 to 9 (0 to 14.5)
Transport, mph (kph) 20 (32)
Tractor Requirement
Tractor Requirement 100 PTO hp (75 kW) or greater with standard ASAE Category III drawbar.
Hydraulic valves All models require two remote hydraulic valves capable of 1500 psi (10343 kPa), 7-pin SAE J560 connector for transport lights
Tubeless Ag Rib Implement Tires
Size 12.5L x 15 8PR
